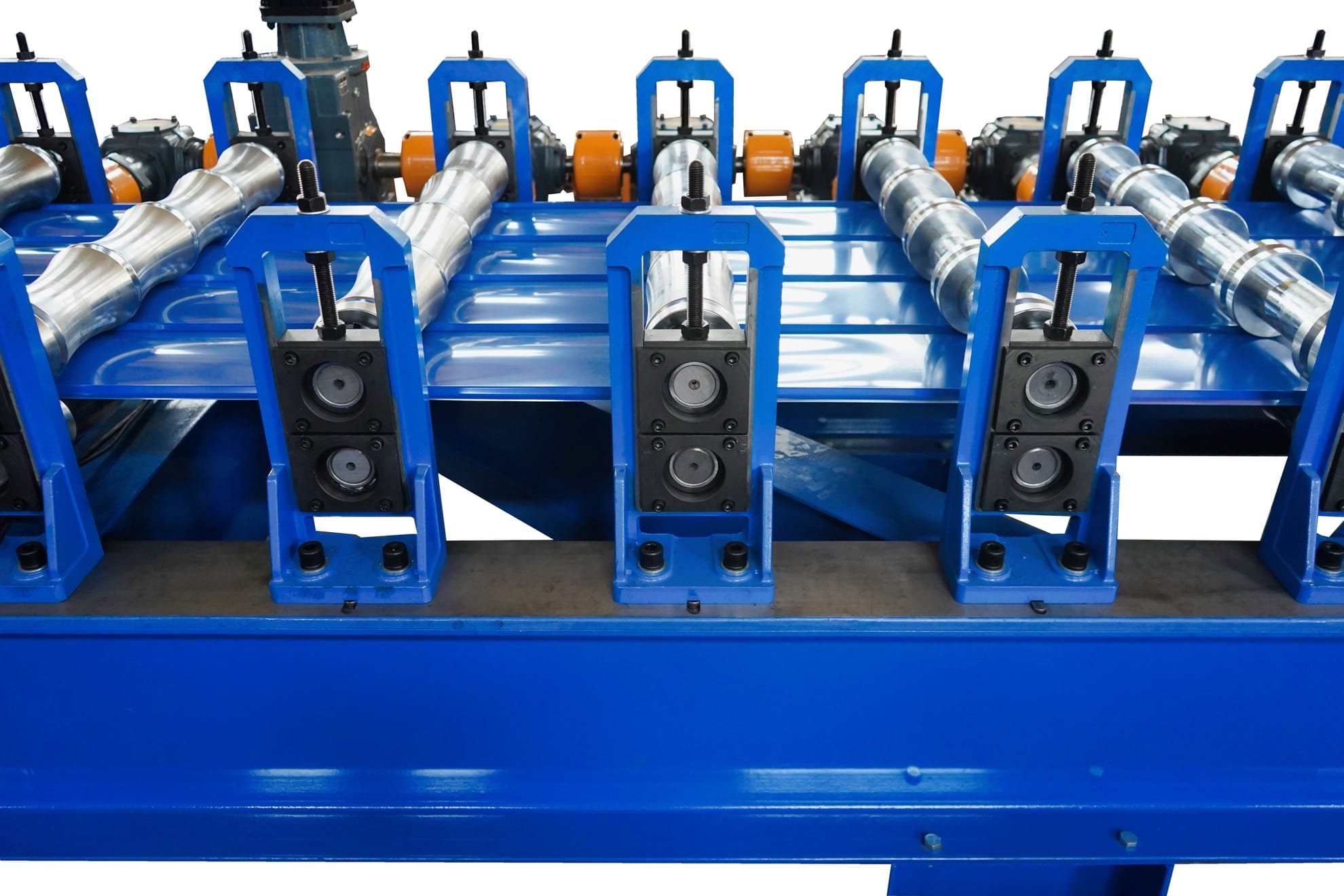

The Glazed Tile Roll Forming Machine is designed for the efficient and precise production of metal roofing tiles. Featuring a high degree of automation, it ensures consistent product quality, stable performance, and ease of operation. Commonly used in modern building projects, this machine supports mass production of glazed tiles with attractive finishes and durable structure.
Product Name: Glazed Tile Roll Forming Machine
Applicable Materials: PPGI, Galvanized Steel, Aluminum
Material Thickness: 0.3mm - 0.8mm
Maximum Sheet Width: 1250mm
Tile Height: 15-30mm
Forming Speed: 8-15m/min
Transmission Type: Chain drive
Cutting Type: Hydraulic cutting
Control System: PLC with touch screen
Voltage: 380V/50Hz/3Phase
Hydraulic Motor Power: 5.5KW
Main Motor Power: 7.5KW
Roller Material: 45# steel, chrome coated
Machine Frame: Heavy duty steel welded structure
Feeding Type: Passive feeding with leveling unit
Line Length: About 10 meters
Machine Weight: Around 6000kg
Operator Requirement: 1-2 workers
Automation Level: Fully automatic
Precision: ±1mm
Roller Stations: Approximately 16 rows
Cooling System: Natural cooling
Cutting Accuracy: ±1mm
Inner Coil Diameter: 508mm
Outer Coil Width: Up to 1250mm
Noise Level: Low
Paint Color: Blue (customizable)
Installation: Integral installation, easy to setup
Mobility: Fixed position
Brand: TOPPO
Customization: Support for custom tile shapes and roller designs
Discharge Table: Optional automatic stacker
Electrical Components: Delta, Siemens (optional)
Application Areas: Residential roofing, warehouses, factories
Warranty: 1 year
After-sales Service: Global support with engineer availability
Maintenance: Low maintenance required
Production Capacity: Up to 300 meters/hour
Tooling Changeover: Fast and simple
Surface Finish: Smooth and high-gloss tile profile
This machine is ideal for manufacturers who require fast turnaround and high-volume production with reliable output. With durable components and a high-end control system, it delivers excellent performance for years of service.
