Type: Hydraulic Flying Shear Roll Forming System
Material: Galvanized steel, Color steel, Galvalume, Aluminum
Thickness: 0.3–0.8 mm
Input Width: 1000–1250 mm
Effective Output: Per customized profile
Roller Stations: 18–22 rows
Roller Material: GCr15 with chrome coating
Blade Material: Cr12Mov hardened steel

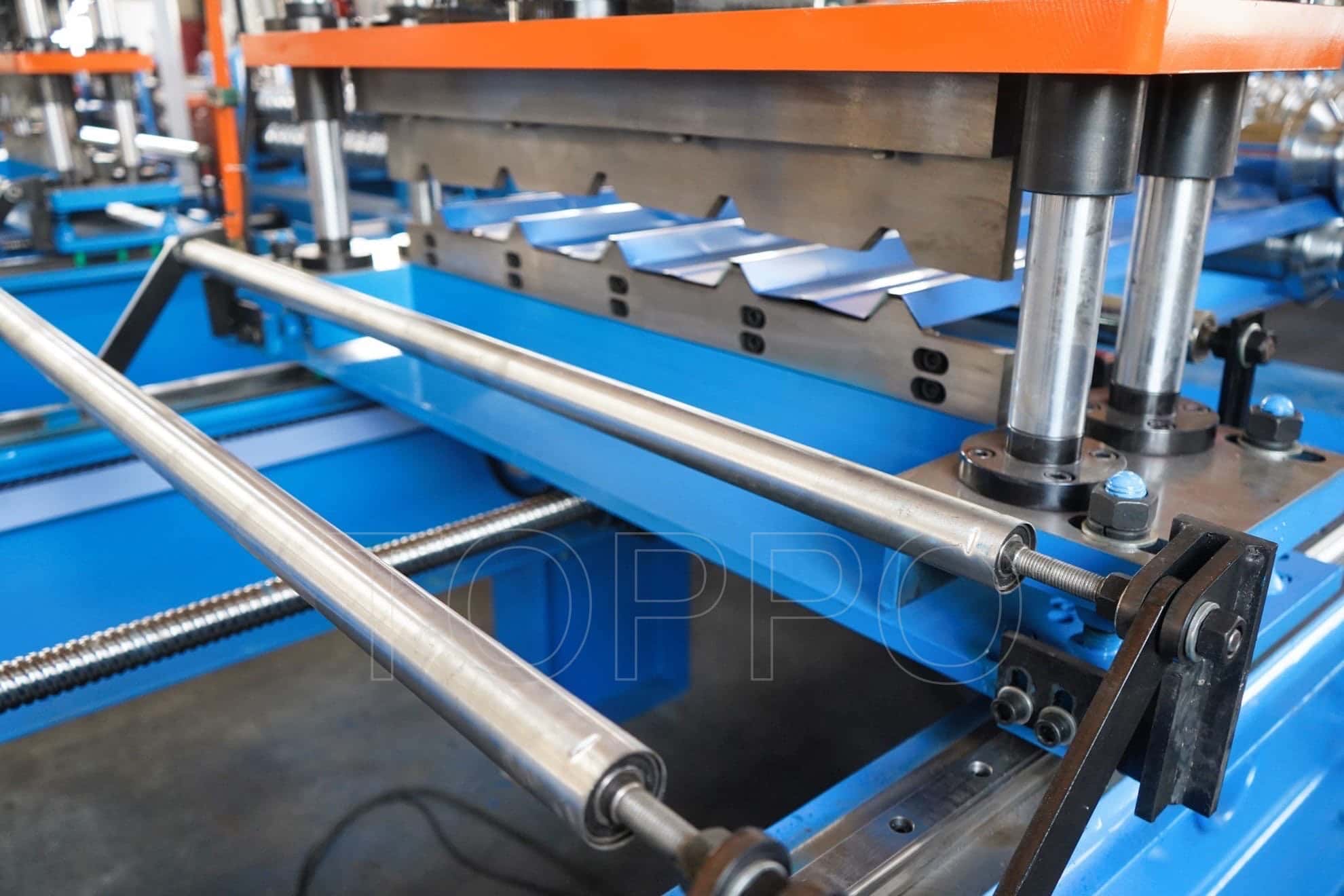

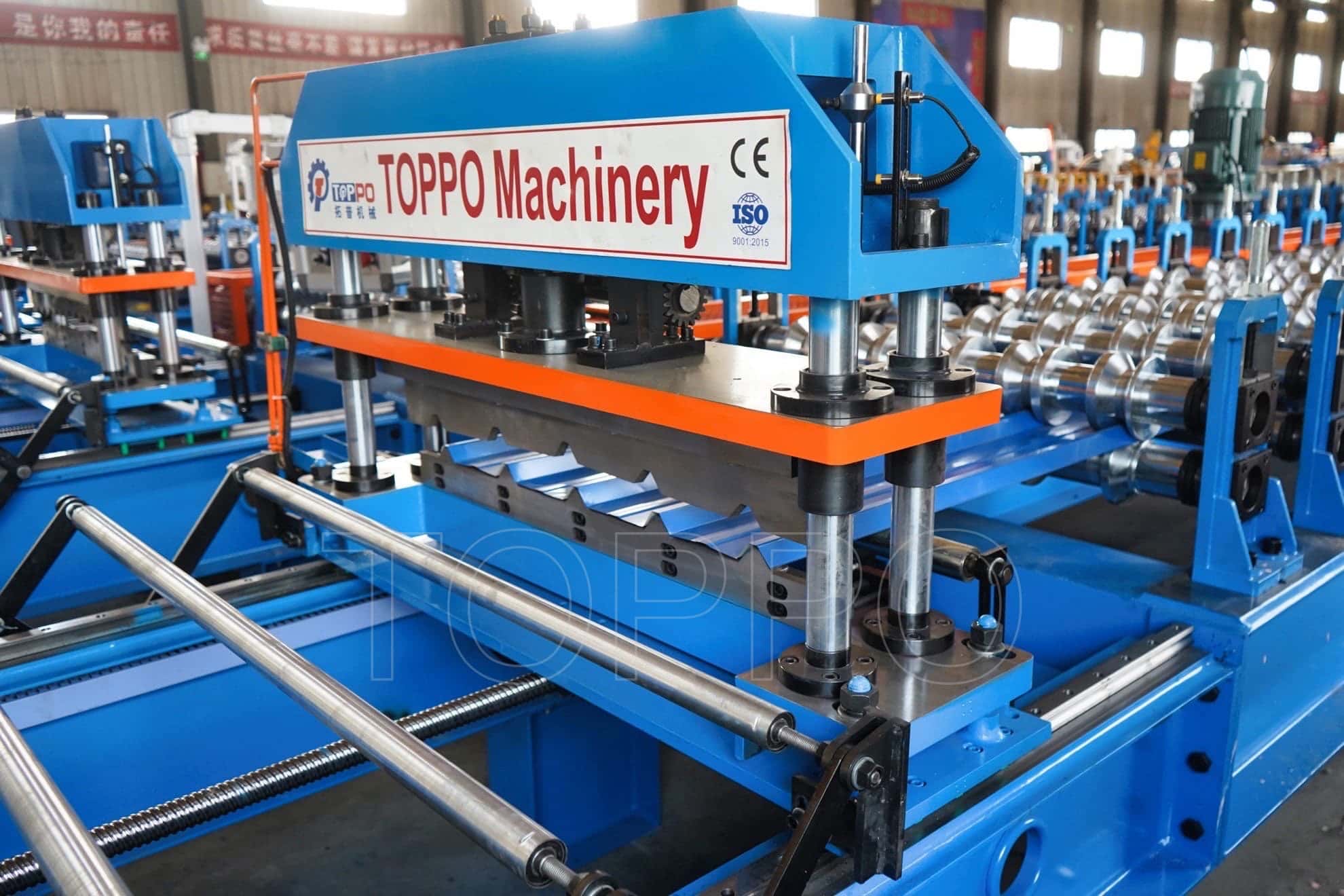

Cutting System: Hydraulic flying shear
Main Motor: 7.5–11 kW

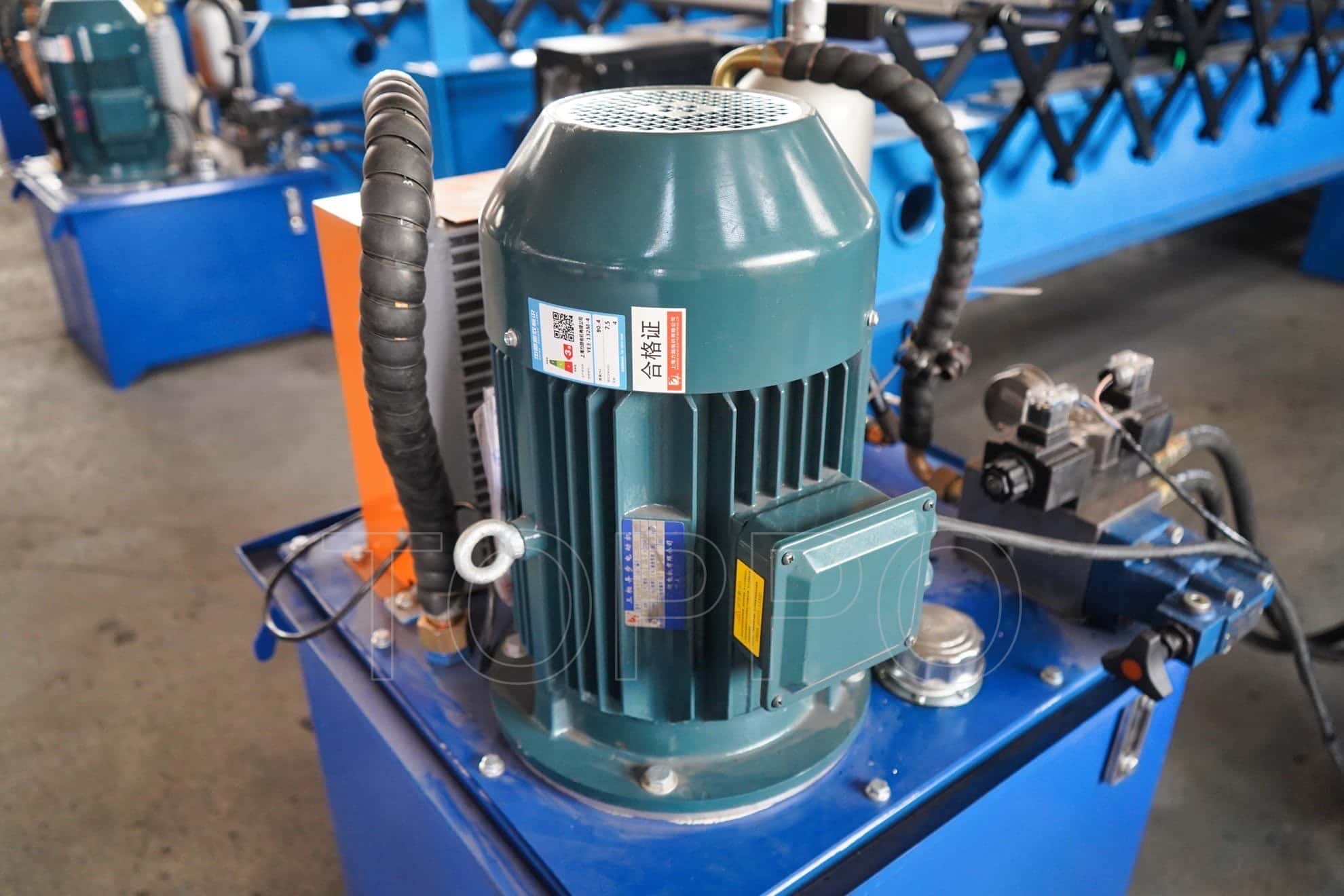

Hydraulic Power: 5.5 kW

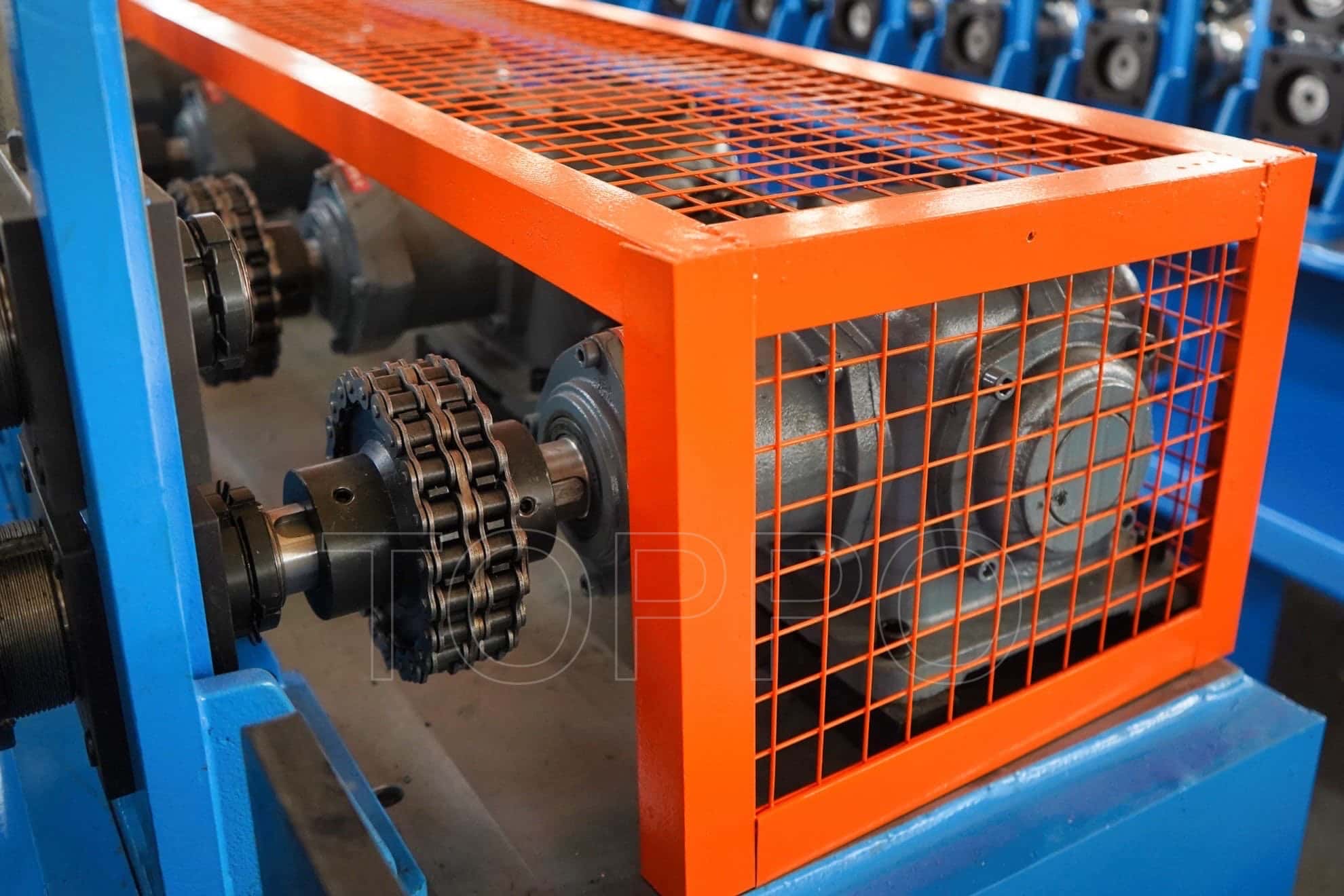

Drive Type: Chain/gearbox combination
Voltage: 380V/50Hz/3Phase or optional
Speed: 12–18 m/min
PLC System: Delta/Siemens
Touchscreen: Delta HMI with visual monitoring
Roll Shaft Diameter: 75 mm
Frame: H-Beam 350 mm steel frame
Cooling: Forced air cooling fan
Lubrication: Centralized oiling
Noise: ≤ 80 dB
Accuracy: ±1 mm
Output Table: With finished panel view
Decoiler: Manual or optional hydraulic 5T
Color: Blue body + red-yellow cutting system
Electrical Components: Schneider
Encoder: Omron brand
Machine Length: 10–12 m
Weight: 7–9 tons
Warranty: 12 months
Support: Video guide, spare parts, remote service
Certification: ISO/CE
Application: Roofing sheet production, siding, prefabricated steel buildings
Industries: Steel structure, metal fabrication, roofing
Packaging: Anti-rust covered, steel wire fixed in container
Delivery: 35–45 working days
Custom Profile: Acceptable
Special Feature: Flying shear with visible output and smart touch control
This full-automatic roll forming machine integrates advanced flying shear technology with visual touchscreen operation for efficient, high-speed production of trapezoidal roofing sheets. Designed for top-tier manufacturers, it ensures consistent output and operator-friendly interface.
