The Precision Hydraulic Roll Forming Machine from TOPPO is an advanced sheet metal processing system built for manufacturing high-quality trapezoidal roof panels. It features a fully automated line with servo-controlled feeding, durable chrome rollers, and a high-efficiency hydraulic cutting unit. The integrated PLC touchscreen panel ensures intuitive control and parameter adjustment for different panel profiles.
Machine Type: Hydraulic Trapezoidal Roof Panel Roll Forming Machine
Material: Galvanized steel, color-coated steel, aluminum
Material Thickness: 0.3 – 0.8 mm
Feeding Width: 1000 – 1250 mm
Panel Width: 840 – 1050 mm
Forming Speed: 12 – 18 m/min
Roller Stations: 20 – 24
Roller Material: 45# steel with hard chrome finish
Shaft Diameter: 75 mm
Cutting System: Hydraulic post-cut using Cr12 blades
Control Accuracy: ±1 mm
Main Motor: 7.5 kW
Hydraulic Power: 5.5 kW
Drive Mode: Chain transmission
Control Panel: PLC touchscreen (Delta/Siemens)
Voltage: 380V, 50Hz, 3 Phase (adjustable)
Machine Size: 9.2 m × 1.6 m × 1.7 m
Weight: Approx. 7.5 tons
Automation: Fully automatic line
Safety Features: Emergency stop, sensor guards, overload protection
Brand: TOPPO Machinery

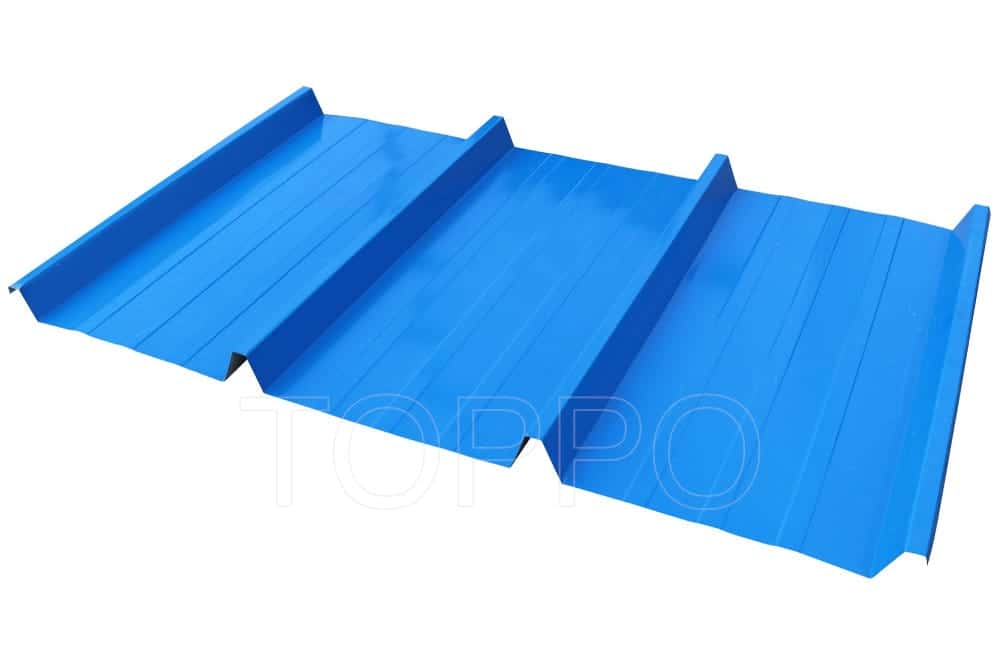

Panel Output: Ribbed trapezoidal roofing sheet
Durability: Engineered for continuous production
Maintenance: Simplified structure for easy servicing
Packaging: Export-grade packaging (wooden or film wrapped)
Delivery Time: 25 – 40 working days
Certifications: CE, ISO9001
Support: Global tech service, remote diagnostics, on-site setup
Customization: Panel type, interface language, color, voltage
User Interface: Multi-language HMI system
This machine provides reliable and high-output roofing sheet production, making it the preferred solution for construction material manufacturers worldwide.
