This TR4 color steel roll forming machine is built for high-speed production with added safety features. The hydraulic cutting system is shielded for operator protection, and the machine is fully controlled via a smart touchscreen PLC interface for seamless operation and precision sheet output.
Product Name: TR4 Trapezoidal Sheet Roll Forming Machine
Material: Color steel, Galvanized steel, Prepainted steel
Material Thickness: 0.3–0.8mm
Production Speed: 10–18m/min

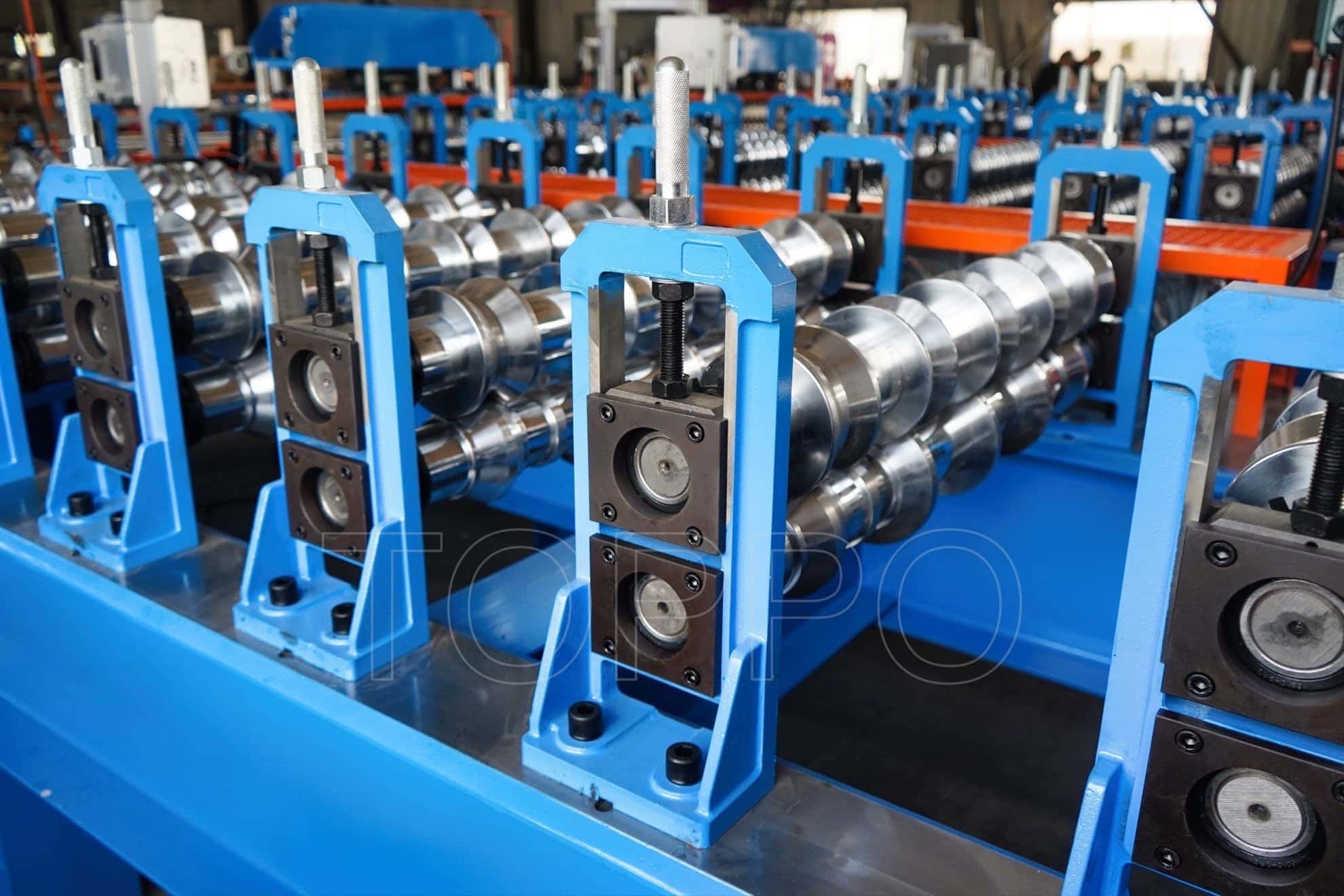

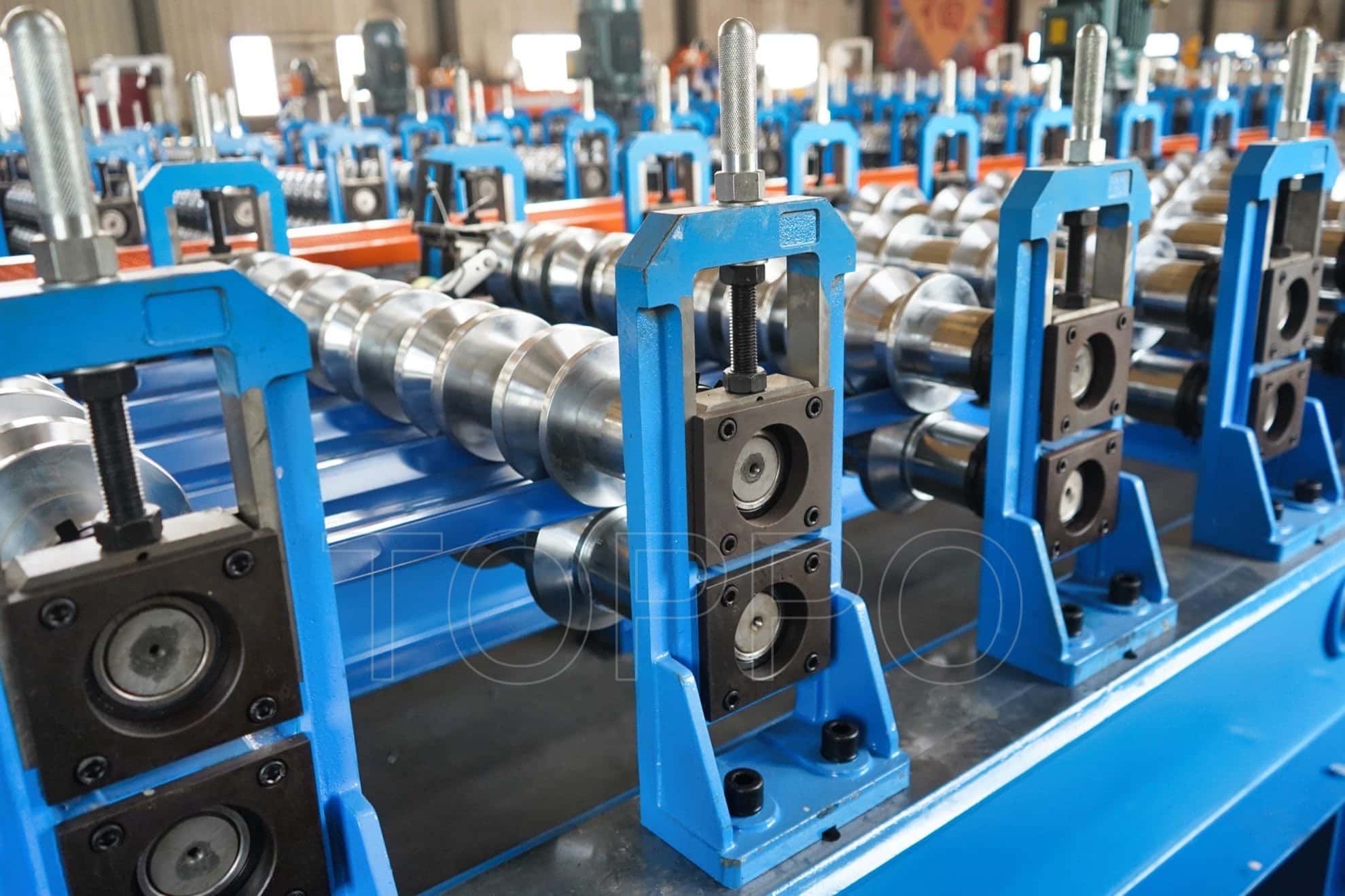

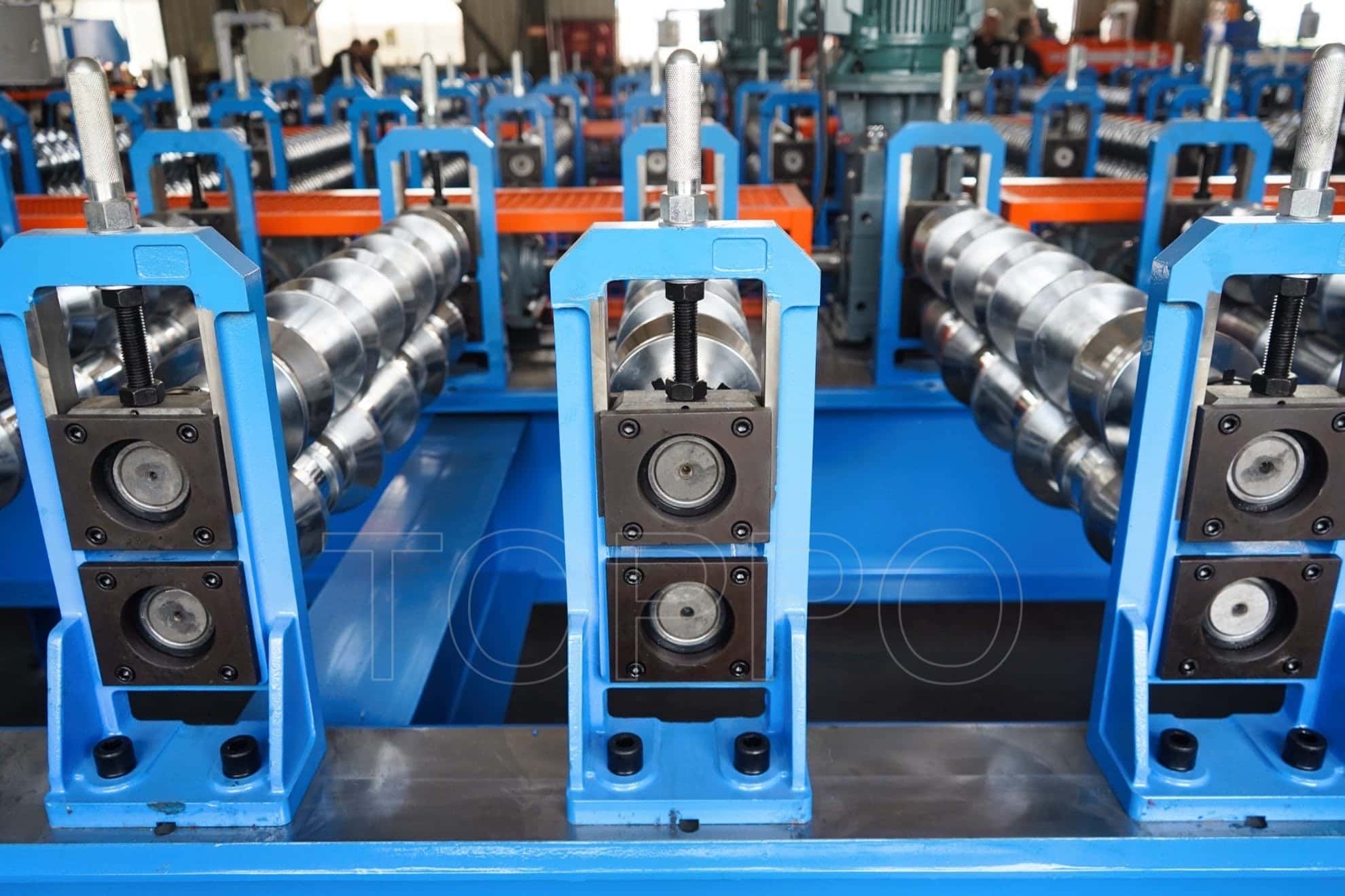

Roll Forming Stations: 16–22
Rollers: 45# steel, hard chrome coated
Cutting Type: Hydraulic post-cutting with safety guard
Blade Steel: Cr12Mov, heat treated
Drive System: Chain or gearbox drive
Main Frame: 350H section steel
PLC Controller: Siemens / Delta / Mitsubishi
HMI Panel: Color touchscreen with multilingual interface
Main Motor Power: 7.5kW

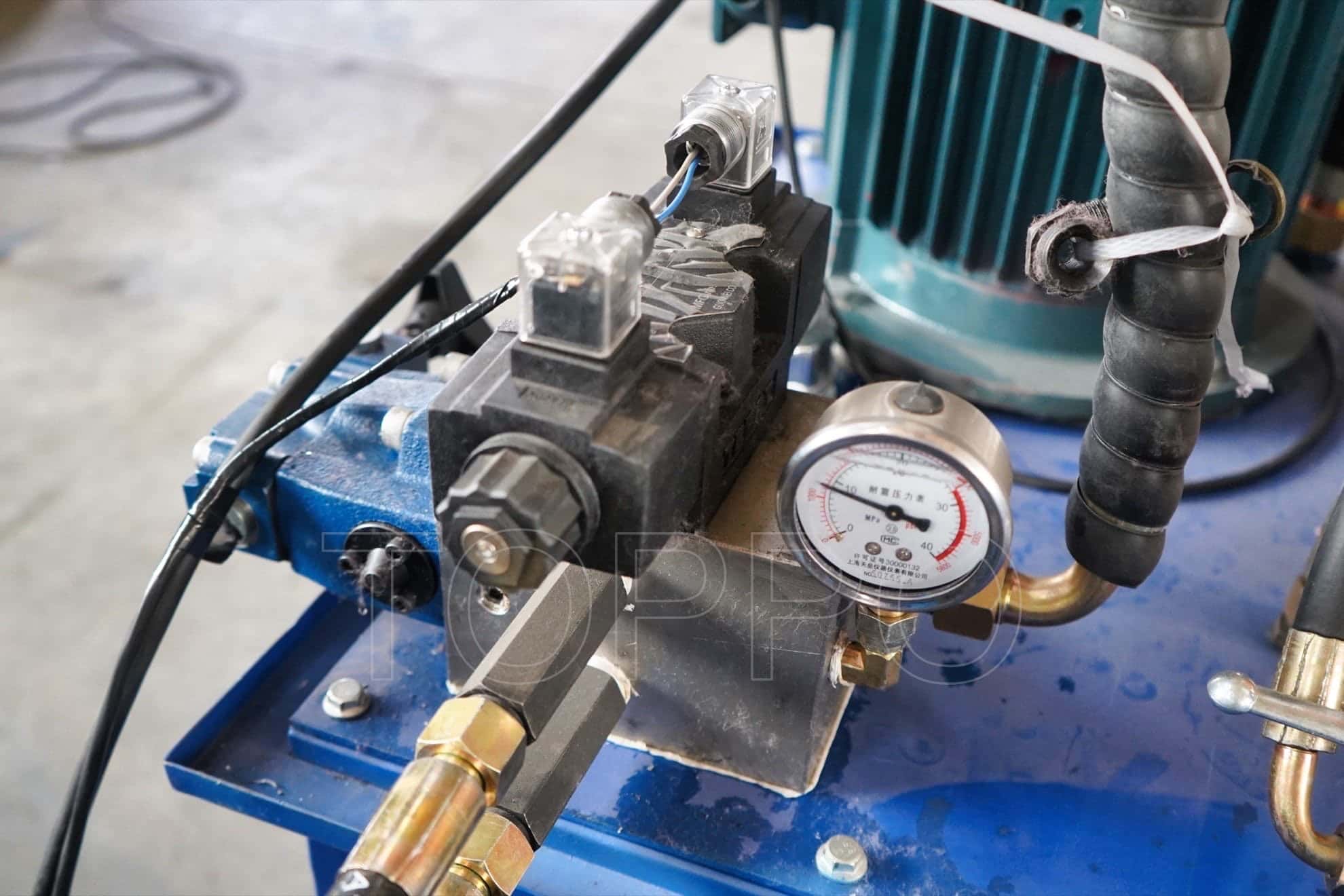

Hydraulic System Power: 4kW
Max Coil Width: 1250mm
Effective Width: TR4 profile standard or customized
Roller Shaft Diameter: 75–90mm
Shaft Material: Forged and quenched steel
Forming Accuracy: ±1mm
Voltage: 380V, 50Hz, 3 Phase
Application: Roofing sheet production (TR4)
Machine Length: 10–12 meters
Machine Weight: Approx. 6–9 tons
Color Options: Customizable (standard blue/red)
Noise Level: ≤75dB
Automation: Full automatic operation
Safety Features: Emergency stop, overload protection, cutter guard
Decoiler: Optional manual or auto
Surface Coating Support: 20–30μm
Lubrication: Auto centralized system
OEM/ODM Services: Yes
Warranty: 1 year
Packing: Plastic film or wooden case
Lead Time: 30–45 days
Support: Online and on-site installation available
This machine offers high productivity with enhanced safety, making it ideal for manufacturers focused on both output and operator well-being during roof panel fabrication.
