This compact tile roll forming machine is designed for users seeking a smaller footprint without sacrificing performance. It is ideal for localized roofing tile production with high accuracy and reliability. A great choice for small workshops, startups, and mobile manufacturing solutions.
Model: Compact Glazed Tile Roll Forming Machine
Material Types: Color steel, galvanized sheet, aluminum
Material Thickness: 0.3mm - 0.7mm
Feeding Width: 1000mm - 1220mm

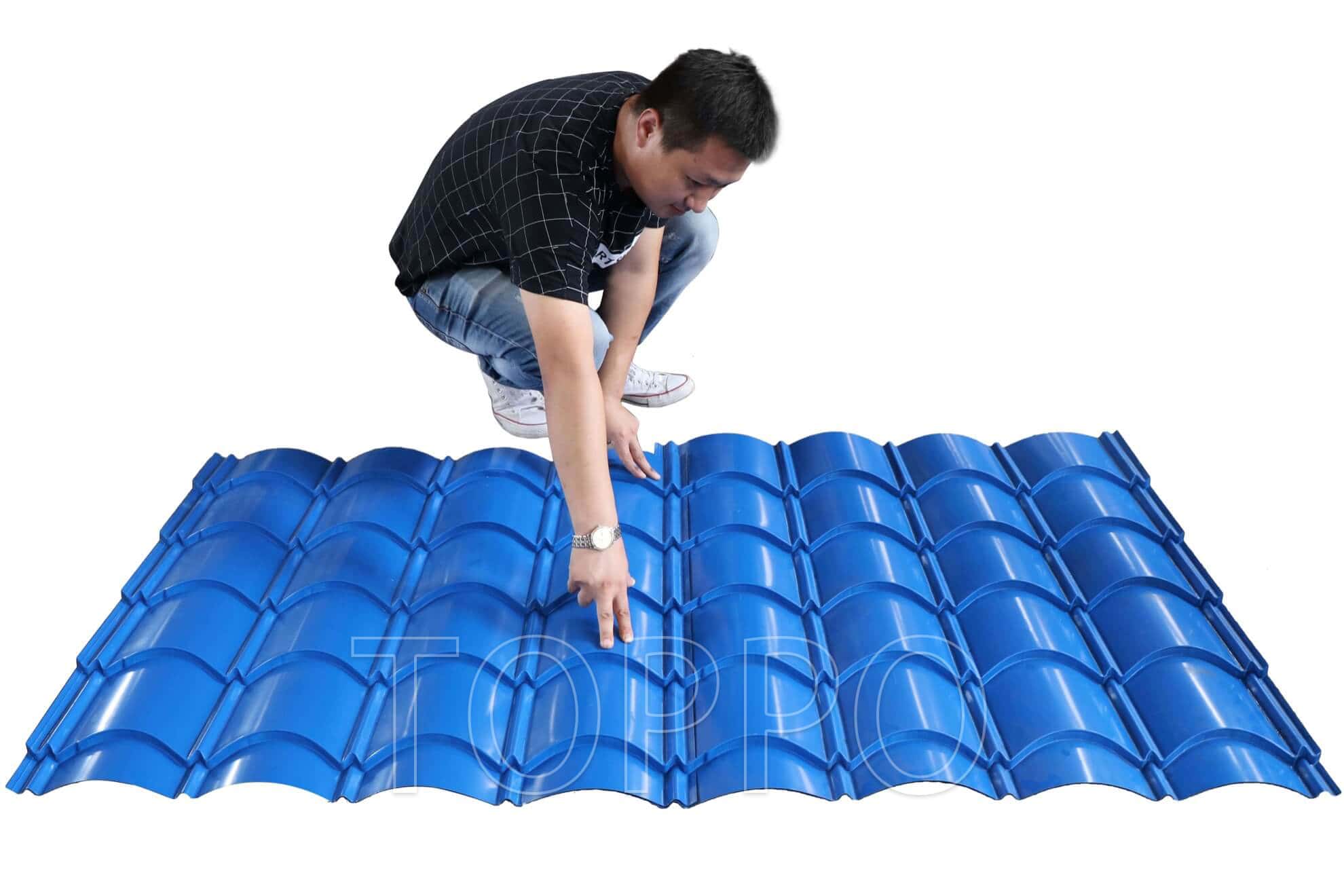

Tile Shape: Glazed tile with curved ridges
Output Width: Approx. 880mm - 1050mm
Production Speed: 6-10 meters per minute
Roller Stages: 14-16 stations
Roller Material: GCr15 steel, quenched and chrome coated
Main Motor: 4KW
Hydraulic Power: 3KW
Voltage: 380V, 50Hz, 3 phase
Cutting System: Hydraulic post-cutter with automatic alignment
Control Mode: PLC with touch screen + manual buttons
Hydraulic Oil Type: 46# hydraulic oil
Cooling: Natural air cooling
Machine Color: Blue and yellow body with green oil tank
Frame Material: Welded carbon steel structure
Accuracy: ±1mm
Operation Requirement: 1 operator
Automation: Fully automatic system
Maintenance: Low and easy maintenance
Footprint: Small size, suitable for tight spaces
Application: Roofing construction for homes, storage, garages
Discharge Table: Optional
Safety Devices: Emergency stop, limit switches
Power Efficiency: Energy-saving electrical design
Stacking System: Manual or automatic (optional)
Daily Output: Up to 2000m²
Warranty: 1 year
Support: Online technical assistance
Packaging: Plastic film and wooden box
Delivery: 15-25 working days
The machine offers a compact yet highly efficient design, suitable for limited workshop spaces while still delivering premium tile shapes. It’s optimized for minimal power usage and quick learning curve for new operators.
