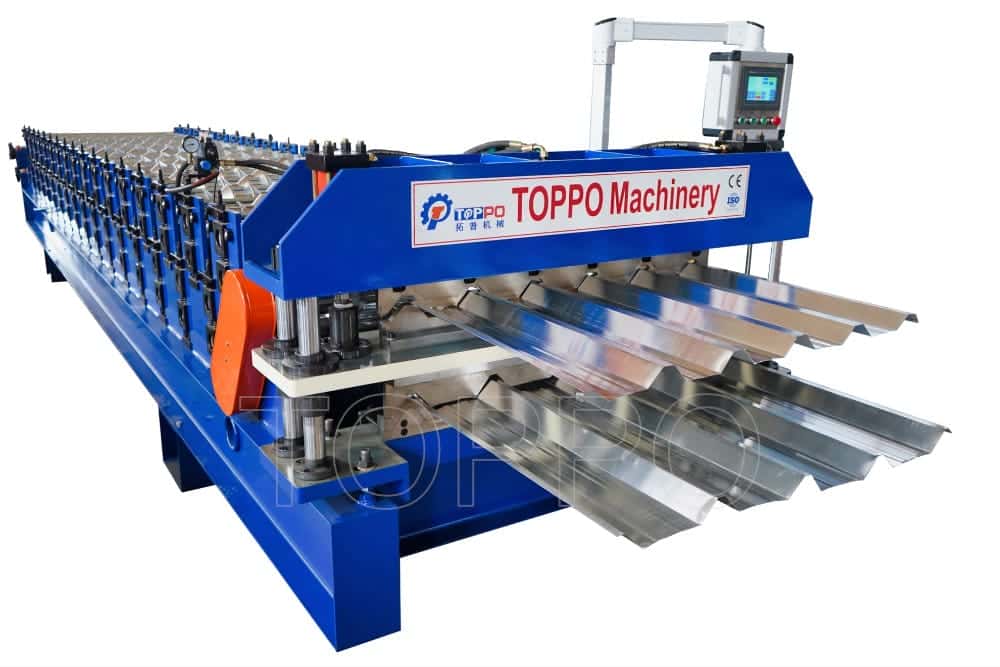

This double layer roll forming machine allows manufacturers to produce two different roofing sheet profiles using a single machine structure. The upper and lower forming layers operate independently, offering flexible production switching while saving workshop space and investment cost.
Constructed with a heavy-duty welded steel frame and precision CNC-machined rollers, the machine ensures accurate profile dimensions, smooth surface finish, and long-term stable performance. It is widely used in steel structure buildings, industrial factories, warehouses, commercial complexes, and residential roofing applications.
1. Equipment Type: Double layer roll forming machine
2. Structure: Dual layer upper and lower forming system
3. Forming Technology: Cold roll forming process

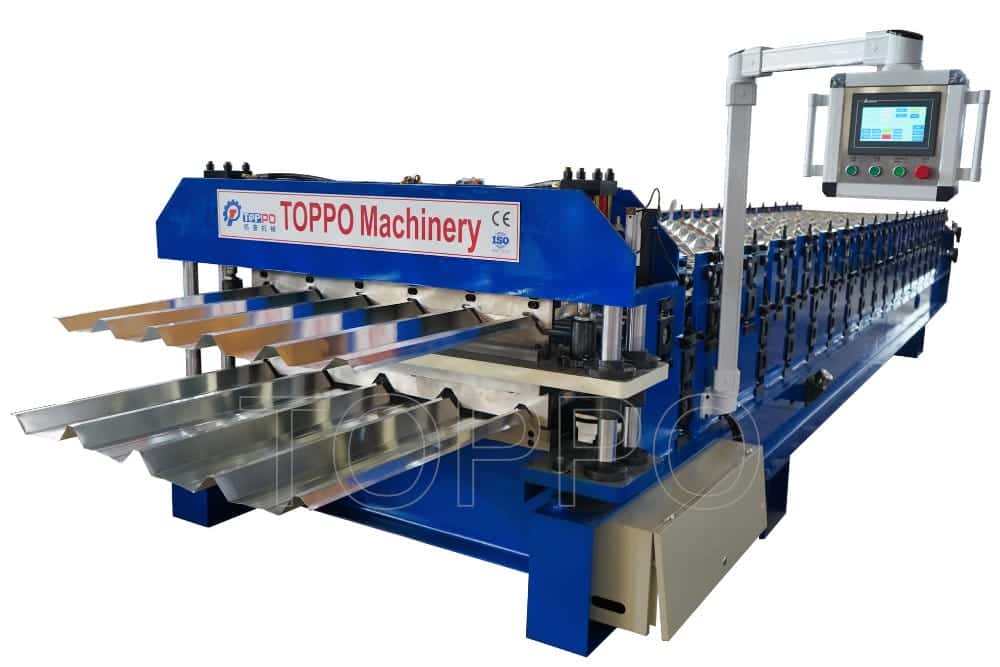

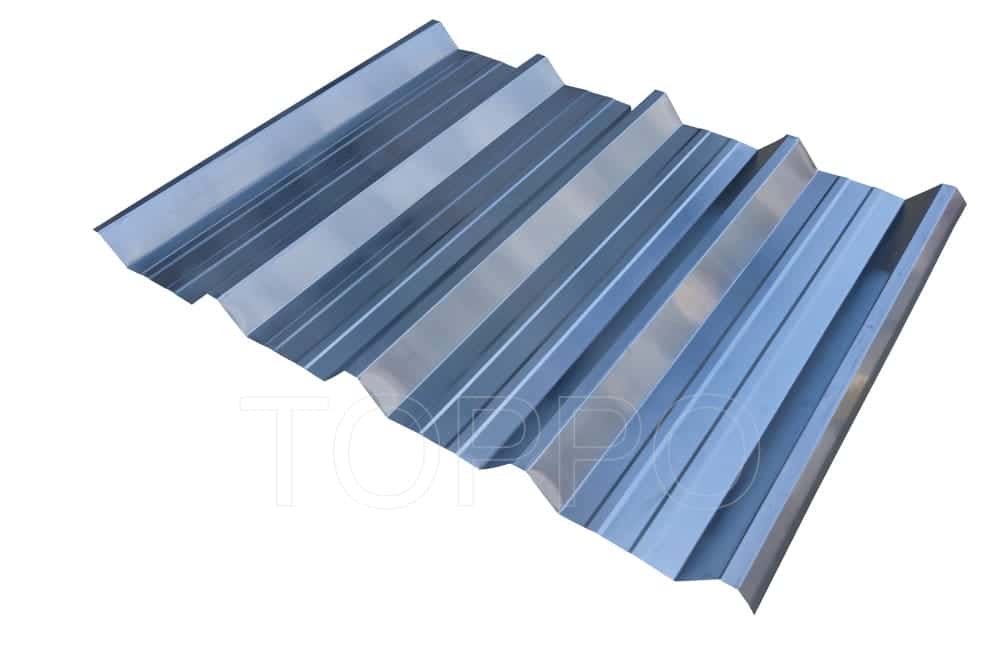

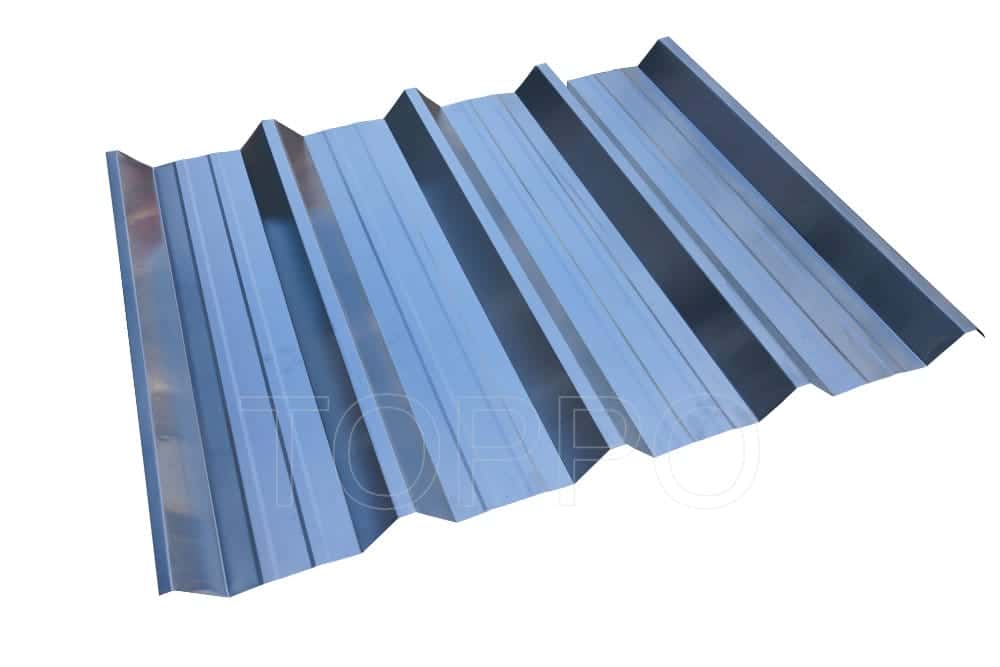

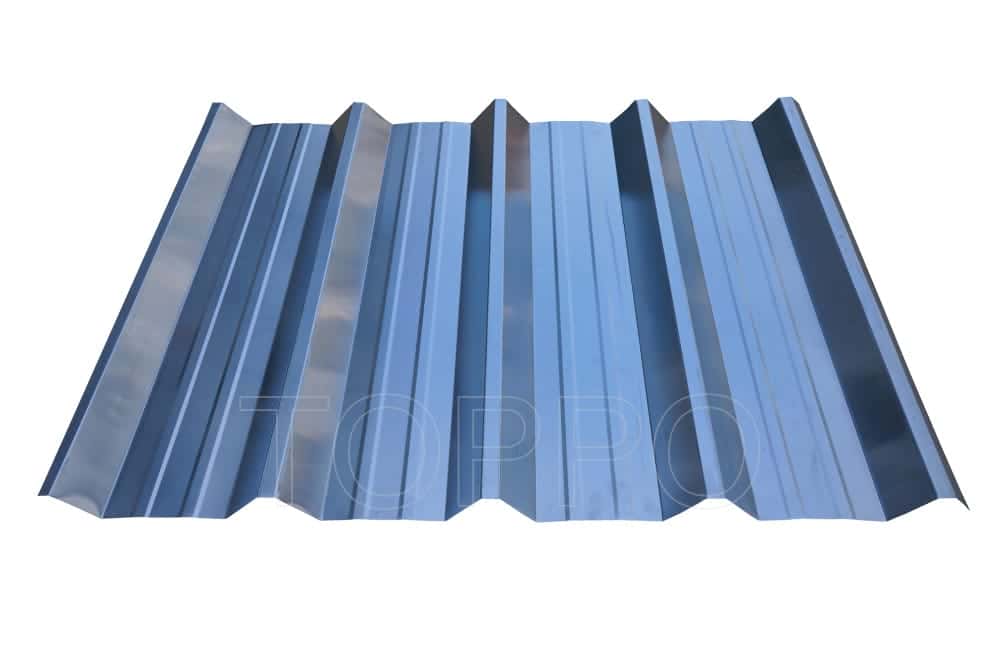

4. Profile Options: Corrugated and trapezoidal sheets
5. Applicable Materials: GI, PPGI, PPGL, Aluminum coils
6. Material Thickness Range: 0.3–0.8 mm
7. Feeding Width: Customized according to profile drawing
8. Effective Forming Width: Based on design specification
9. Forming Stations: 14–18 stations per layer

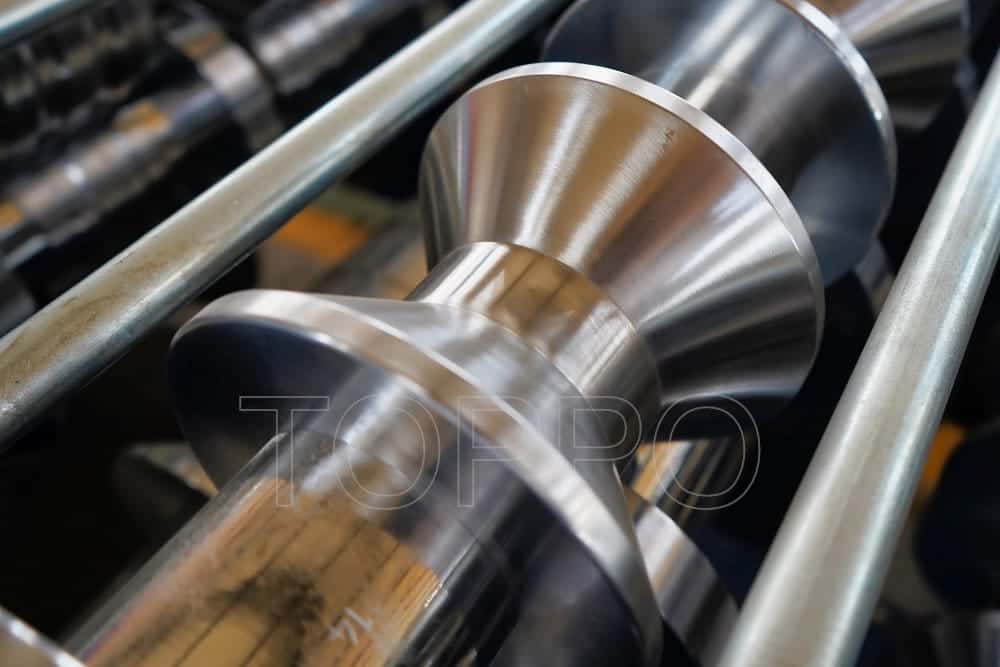

10. Roller Material: 45# forged steel
11. Roller Surface Treatment: Hard chrome plating
12. Shaft Material: High-strength 45# steel
13. Shaft Diameter: 70–80 mm
14. Transmission Mode: Chain drive system
15. Gearbox: High precision reducer
16. Main Motor Power: 5.5–7.5 kW
17. Hydraulic Station Power: 4 kW

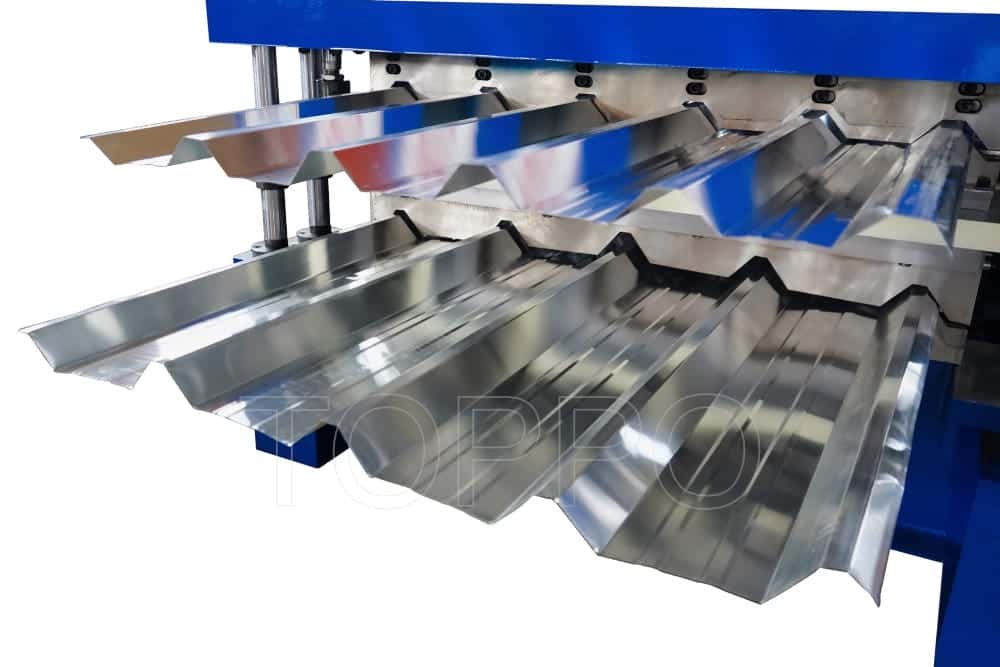

18. Cutting Method: Hydraulic post cutting
19. Cutting Blade Material: Cr12 heat-treated steel
20. Cutting Accuracy: ±2 mm

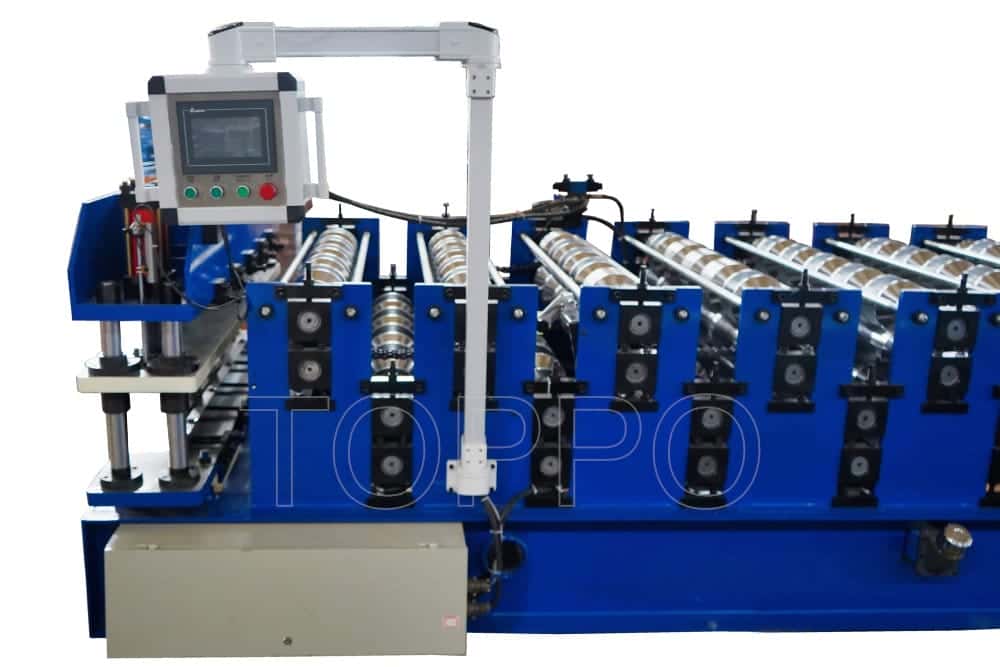

21. Control System: PLC automatic control
22. Operation Interface: Touch screen HMI
23. Length Measurement: Encoder automatic measuring
24. Production Speed: 8–15 m/min
25. Voltage: 380V / 50Hz / 3Phase (customizable)
26. Decoiler Type: Manual or hydraulic optional
27. Decoiler Capacity: 5–10 tons

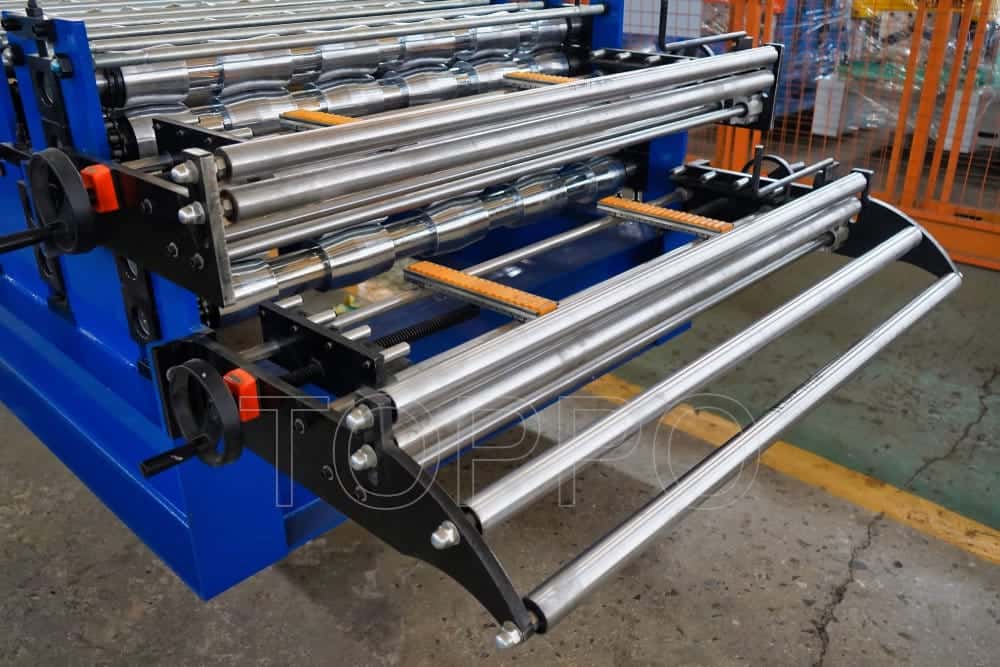

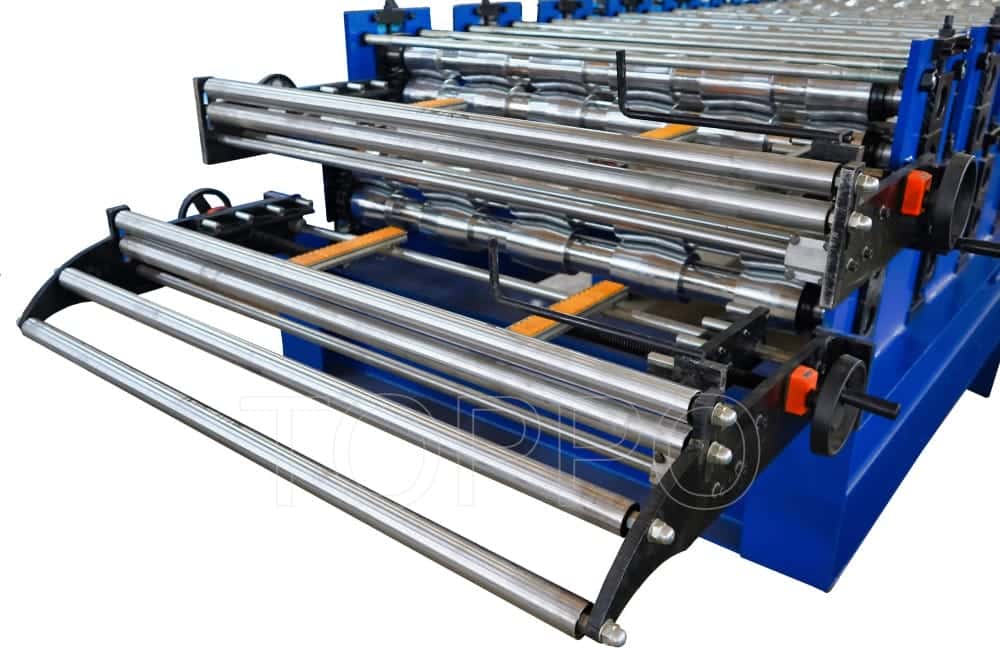

28. Feeding Guide Device: Adjustable guiding system
29. Leveling System: Integrated leveling rollers
30. Frame Structure: Heavy-duty welded steel base
31. Surface Coating: Anti-rust paint treatment
32. Machine Color: Customizable
33. Lubrication System: Manual lubrication
34. Safety Protection: Emergency stop button
35. Protective Cover: Optional safety guard
36. Operation Mode: Fully automatic continuous forming
37. Noise Level: Low operation noise
38. Finished Panel Surface: Smooth and uniform
39. Application: Industrial factories
40. Application: Warehouses
41. Application: Workshops
42. Application: Commercial buildings
43. Application: Residential houses
44. Application: Agricultural structures
45. Machine Weight: Approx. 8–12 tons

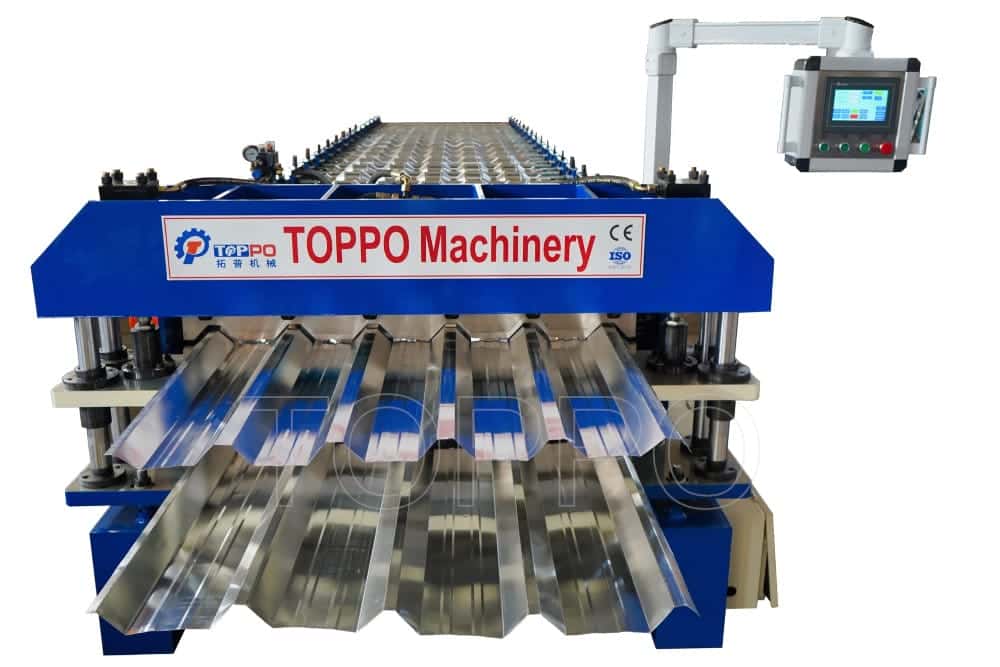

The double layer configuration significantly enhances productivity by enabling two roofing sheet profiles to be manufactured on one production line. This reduces floor space requirements and lowers equipment investment costs.

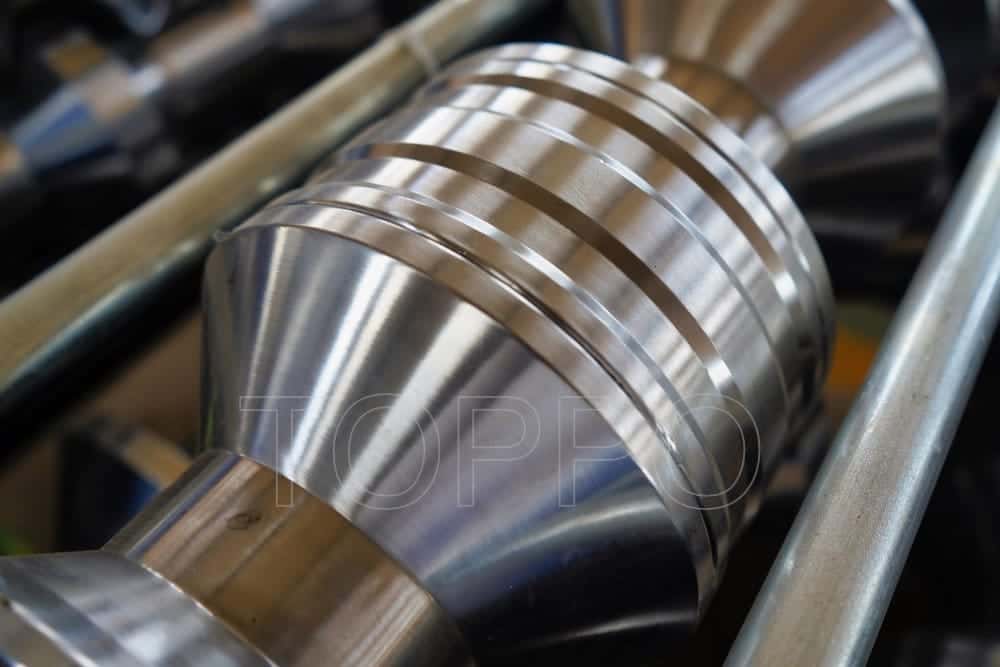

High-precision chrome-plated rollers ensure excellent forming accuracy and long service life. The PLC control system allows automatic length setting and quantity control, making operation simple and efficient.
We provide comprehensive technical support, installation guidance, commissioning service, and customized solutions based on customer drawings and specific project requirements.
