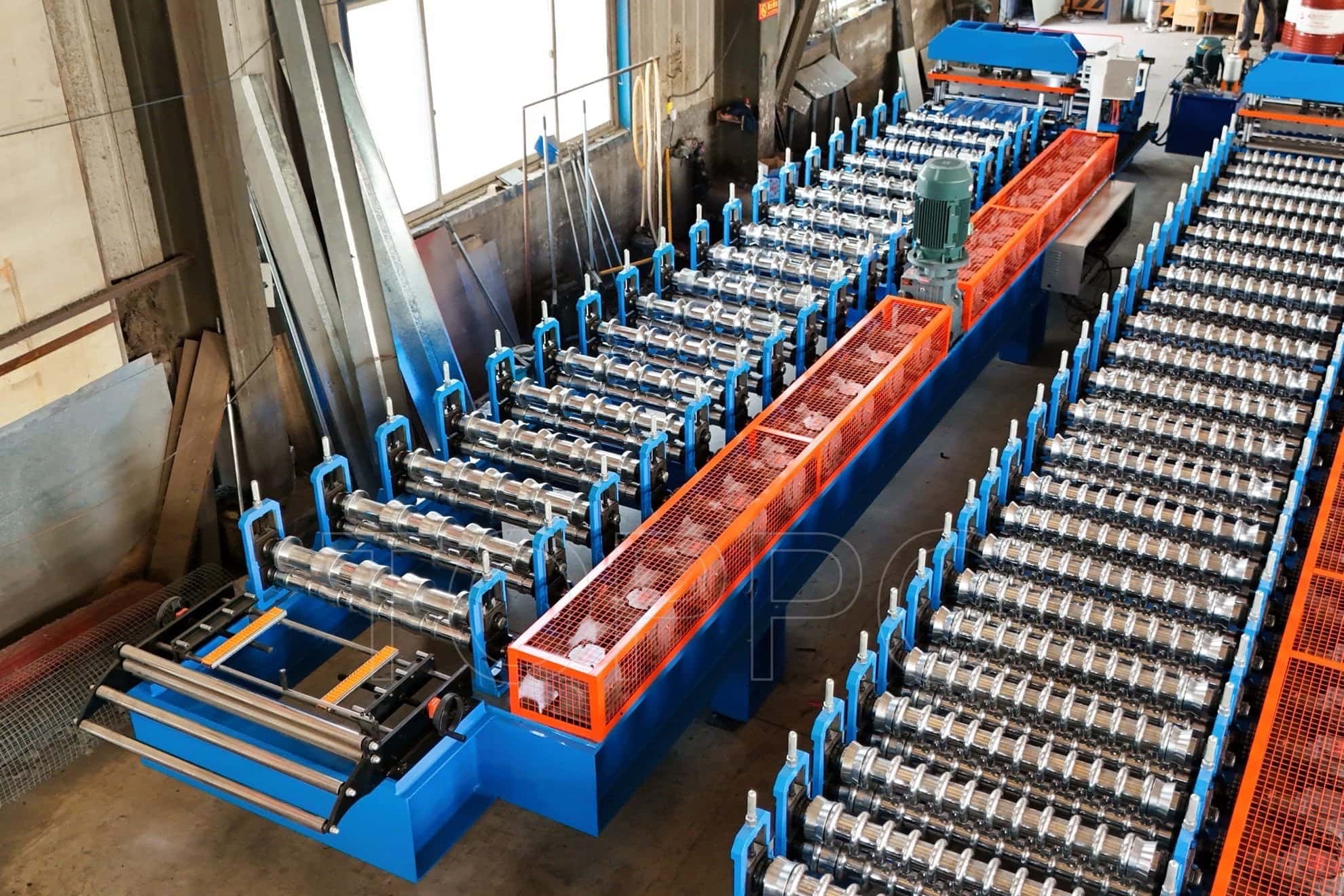

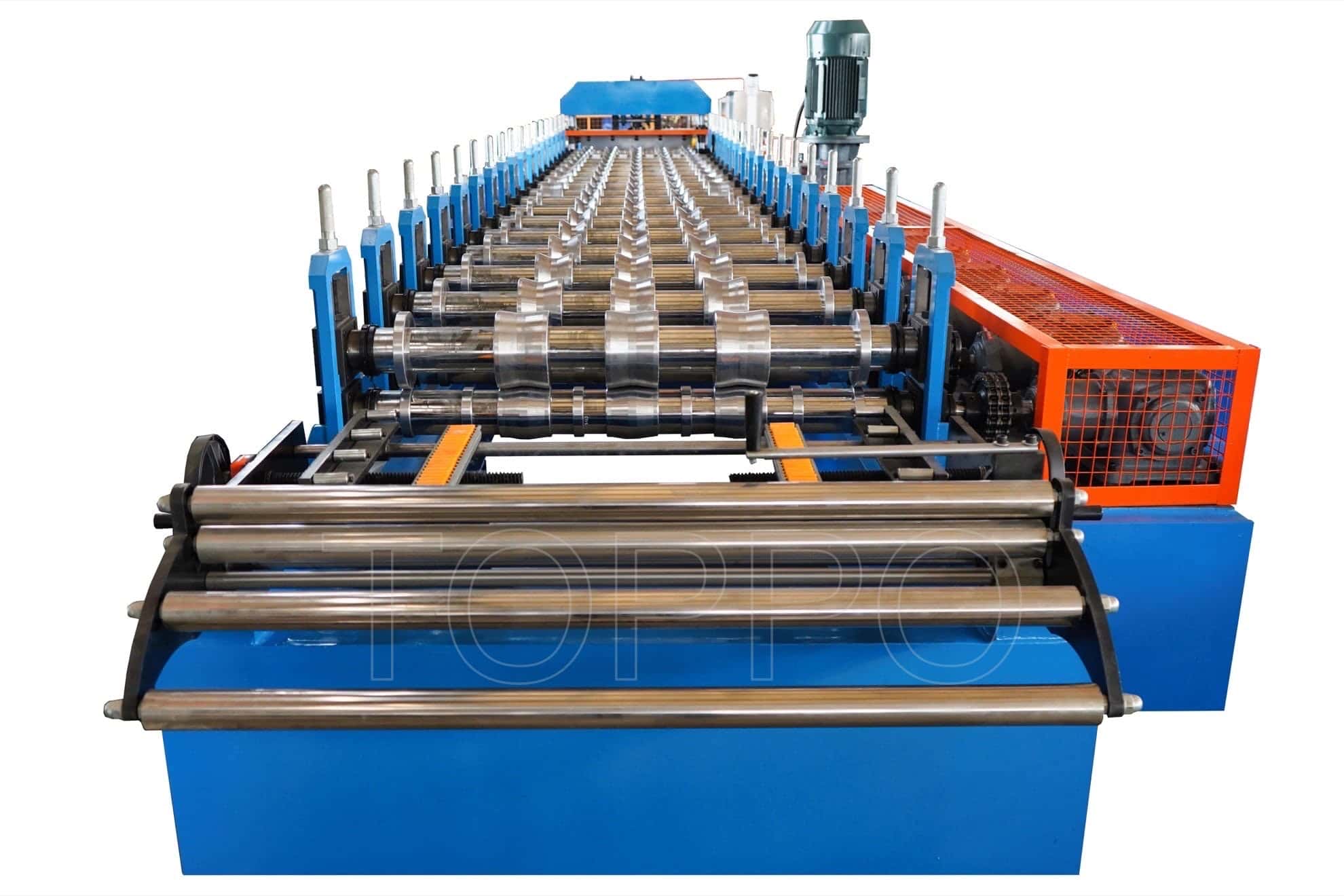

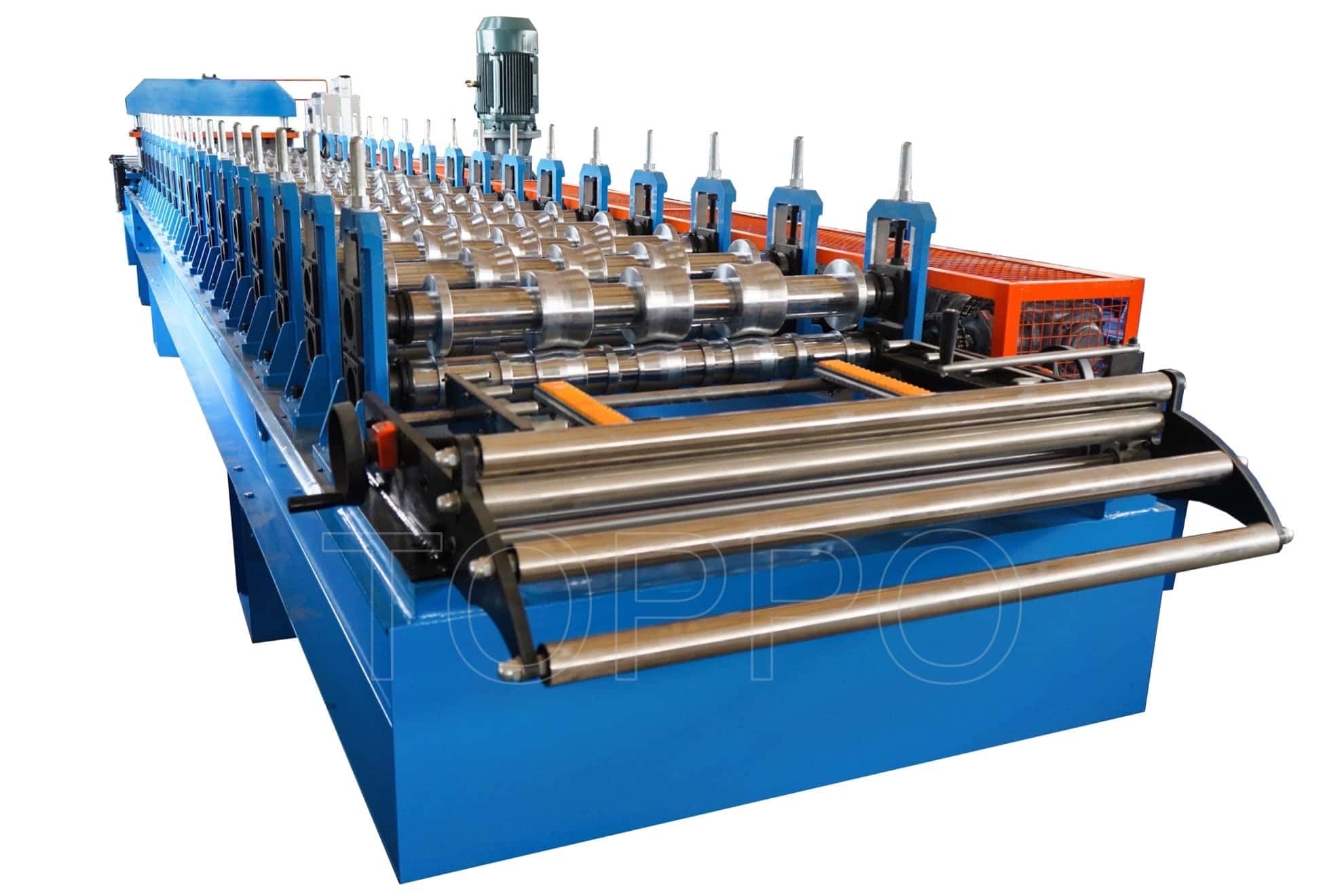

The High-Capacity Trapezoidal Sheet Roll Forming Machine is engineered for mass production of roofing sheets in construction and steel fabrication industries. It features a PLC control system with touchscreen interface, powerful hydraulic cutting, and hardened roller stations for precise panel profiles. Designed for demanding workloads, it ensures consistent output with minimal downtime.
Machine Type: Heavy-Duty Trapezoidal Roll Forming Machine
Panel Application: Industrial buildings, commercial roofing
Material: Galvanized steel, aluminum, pre-painted coils
Material Thickness: 0.3 – 0.8 mm
Feeding Width: 1000 – 1250 mm
Effective Panel Width: 840 – 1050 mm
Forming Speed: 12 – 20 m/min

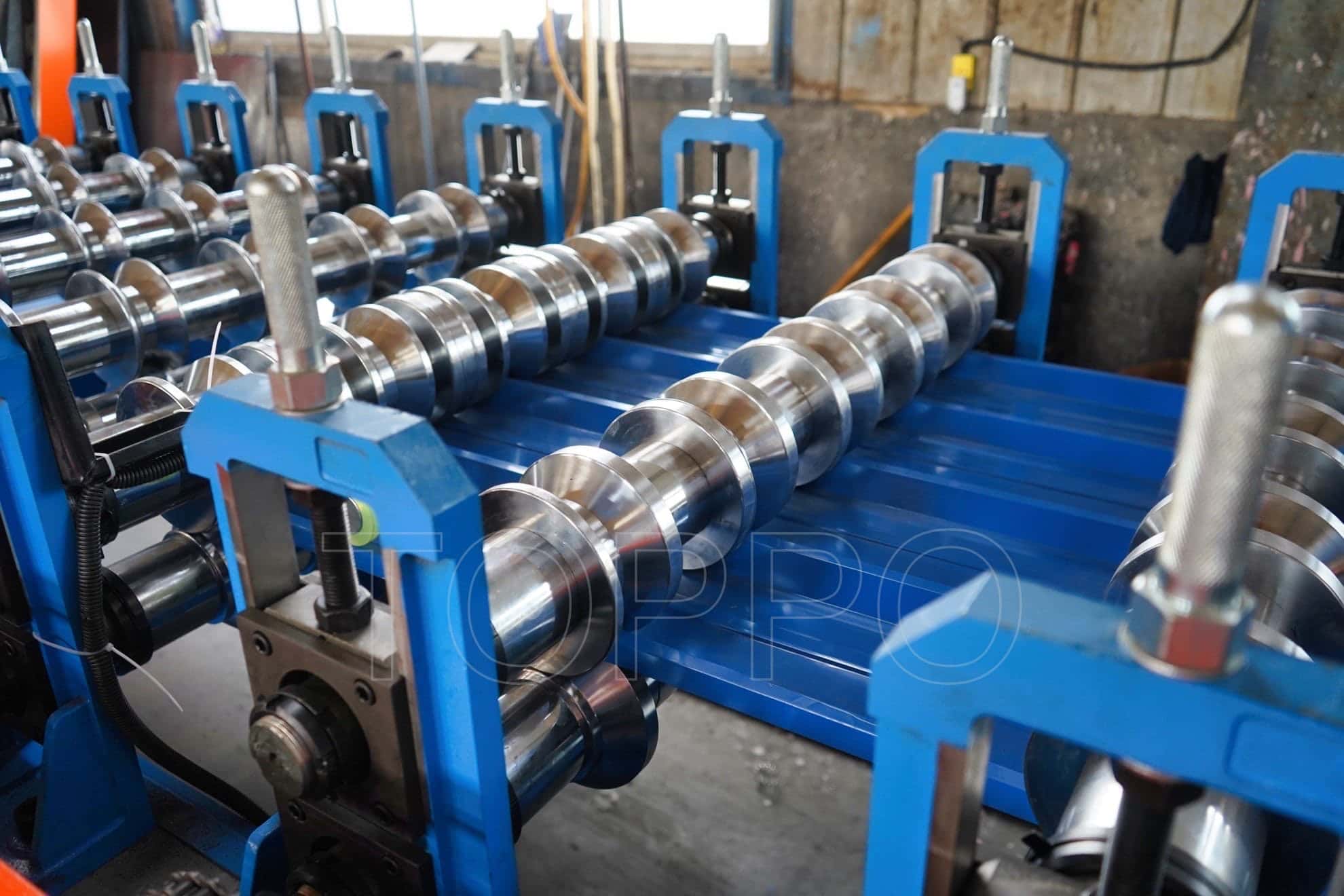

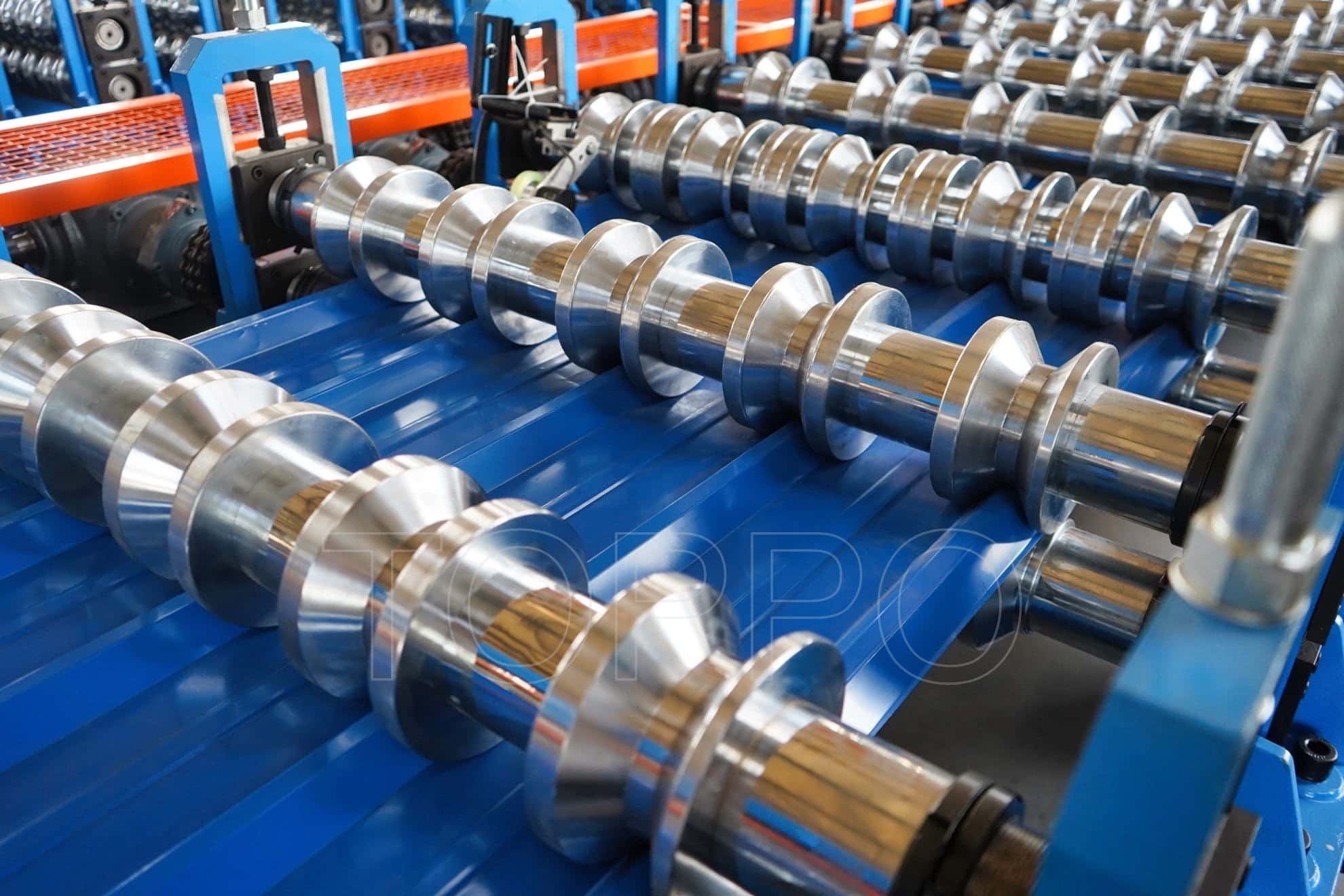

Roller Stations: 22 – 26
Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 75 mm

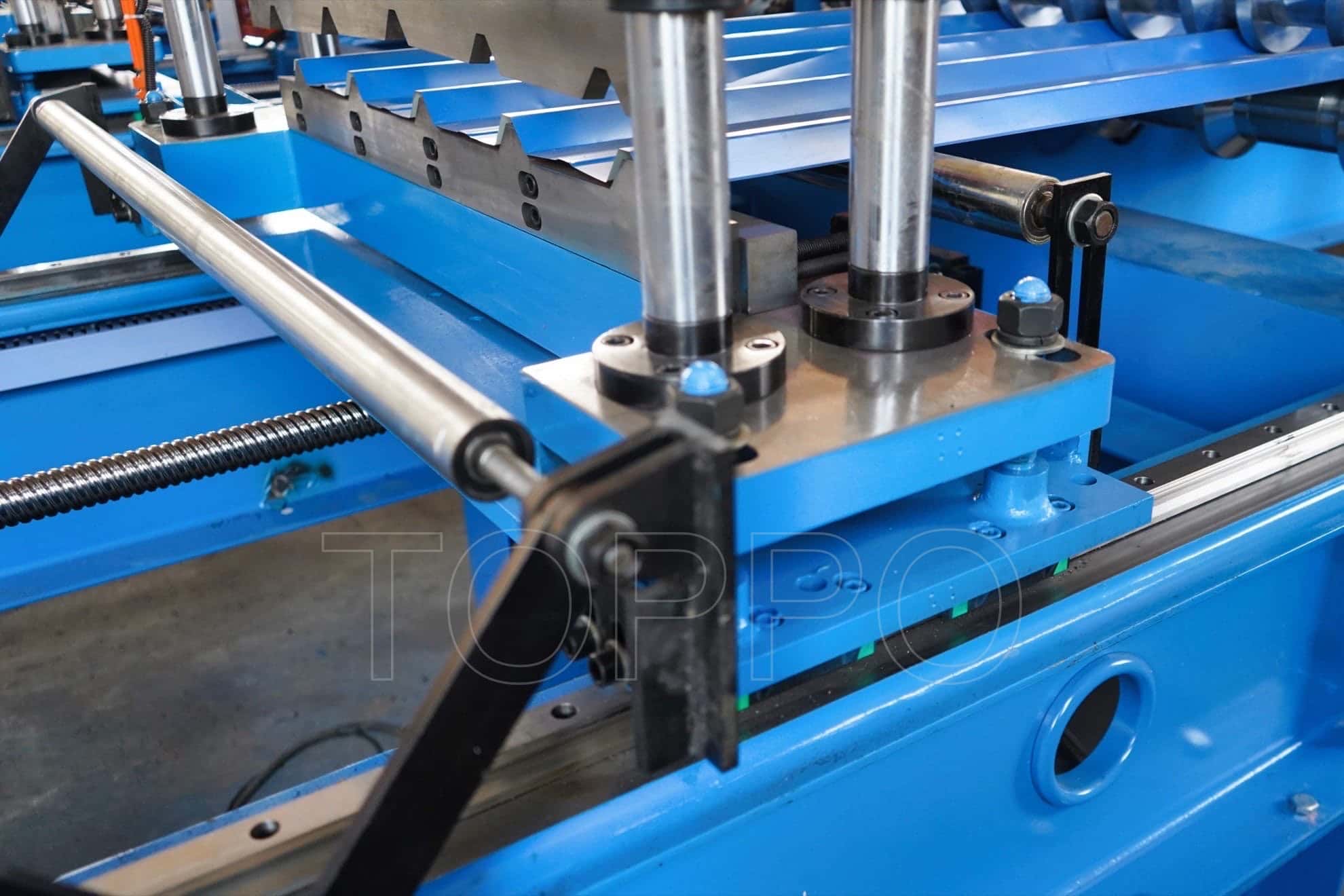

Cutting System: Hydraulic post-cutting with Cr12MoV blades
Cutting Accuracy: ±1 mm

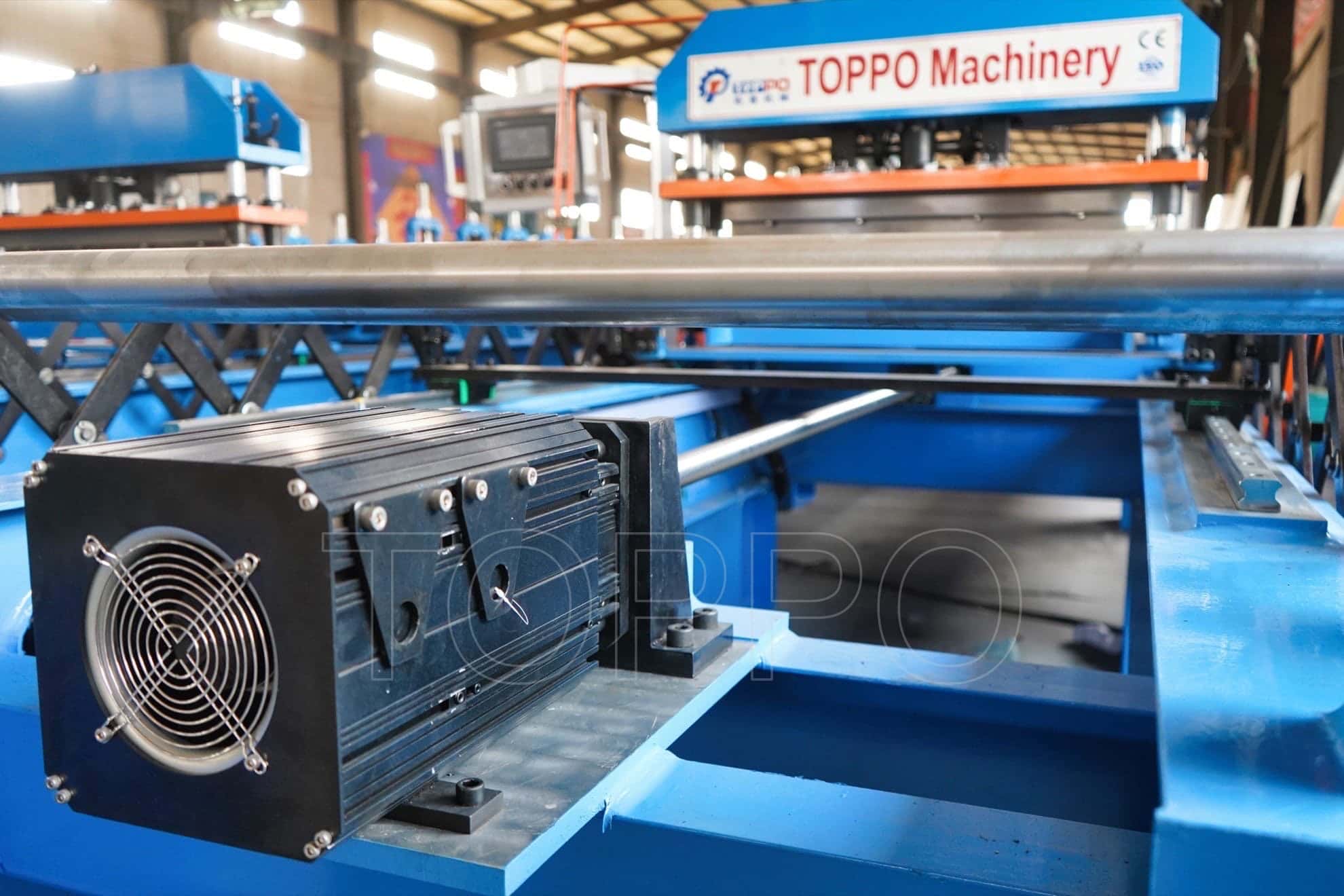

Main Motor: 7.5 kW
Hydraulic Power: 5.5 kW
Drive Mode: Chain drive
Control System: PLC + HMI (Delta or Siemens)
Voltage: 380V/50Hz/3 Phase (customizable)
Machine Dimensions: 9.5 m × 1.6 m × 1.7 m
Weight: 7.8 tons
Automation Level: Fully automatic
Panel Output: Ribbed trapezoidal sheet with clean finish
Noise Level: ≤75 dB
Safety Features: Emergency stop, overload protection, panel guard
Durability: Built for continuous operation
Maintenance: Easy maintenance layout
Brand: TOPPO Machinery
Packaging: Export standard wooden package or film
Delivery Time: 25 – 45 working days
Support: Online diagnostics, field installation & training
Customization: Profile, voltage, interface language
Certifications: CE & ISO9001
User Interface: Touchscreen panel with multi-language support
This machine offers a reliable, efficient, and industrial-strength solution for large-volume roofing panel production under demanding conditions.
