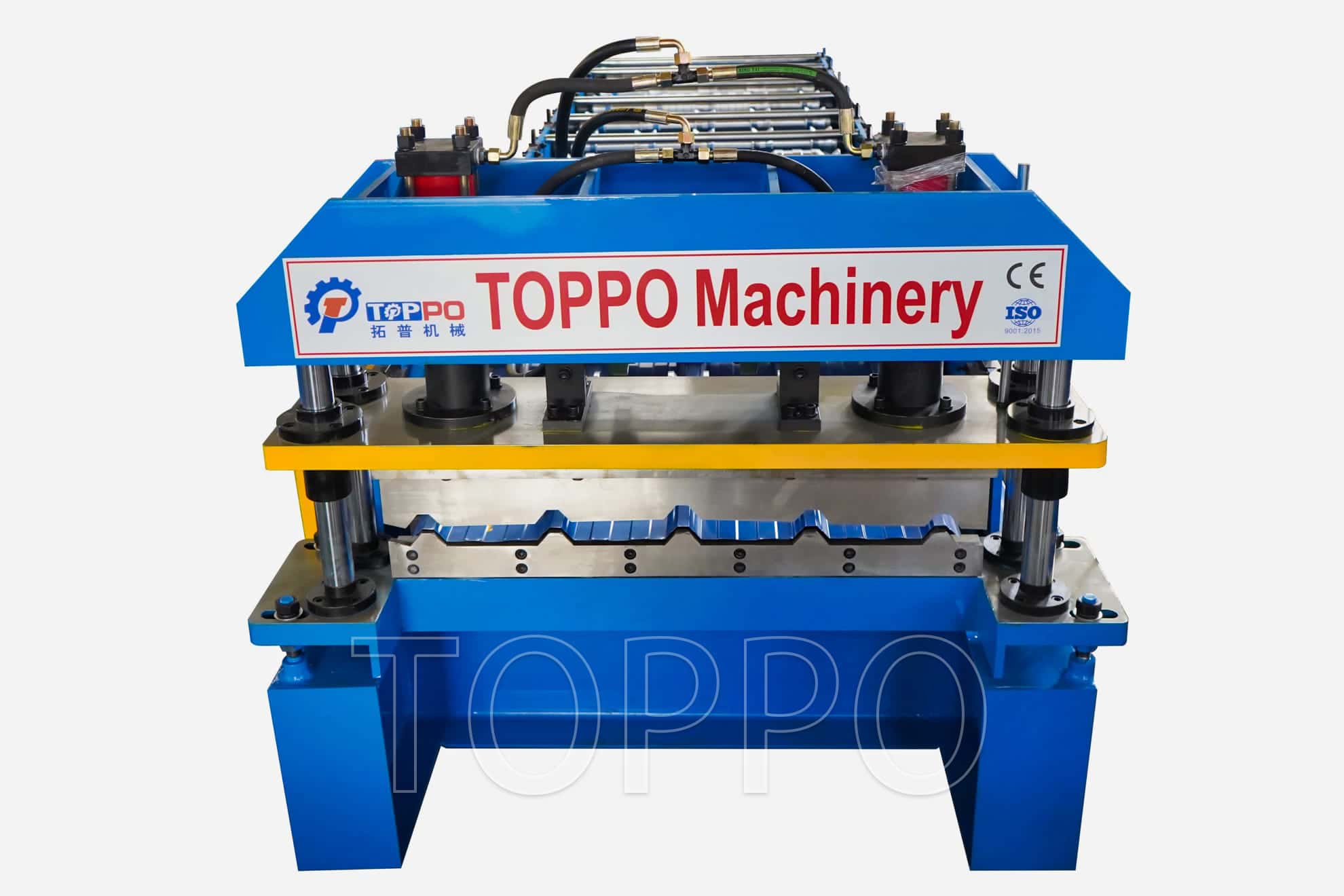

The Advanced Hydraulic Trapezoidal Roofing Roll Forming Machine is specially designed for manufacturing roofing sheets used in a wide range of construction projects. It integrates an efficient hydraulic cutting unit and precision rollers for superior forming quality. With a strong machine base and PLC-based touch screen interface, the machine ensures user-friendly control and stable production performance.
Machine Type: Hydraulic Trapezoidal Roofing Panel Forming Machine
Material: PPGI, galvanized steel, aluminum coils
Material Thickness: 0.3 – 0.8 mm
Feeding Width: 1000 – 1250 mm
Effective Width: 840 – 1050 mm
Forming Speed: 10 – 15 m/min
Roller Stations: 18 – 22 rows
Roller Material: 45# steel with hard chrome coating
Shaft Diameter: 70 mm
Drive System: Chain drive
Cutting Method: Hydraulic cut with Cr12 blades
Cutting Precision: ±1 mm
Main Motor: 5.5 kW
Hydraulic Power Unit: 4 kW
Power Supply: 380V/50Hz/3 Phase (customizable)
Machine Dimensions: 8.5 m × 1.5 m × 1.6 m
Weight: 6.5 tons
Control System: PLC with touchscreen HMI (Delta or Siemens)
Panel Output: Ribbed trapezoidal profile
Noise Level: ≤75 dB
Safety Features: Emergency stop, guarding enclosures
Automation: Fully automatic
Brand: TOPPO Machinery
Certifications: CE, ISO9001
Packaging: Seaworthy export packing
Delivery: 25 – 40 working days
Customization: Supported (voltage, panel, paint color)
User Interface: Multi-language system
Durability: Suitable for 24/7 industrial operation
Maintenance: Easy-to-service layout
This machine offers stable operation, high forming precision, and automation, making it a valuable asset for efficient roofing sheet production.
