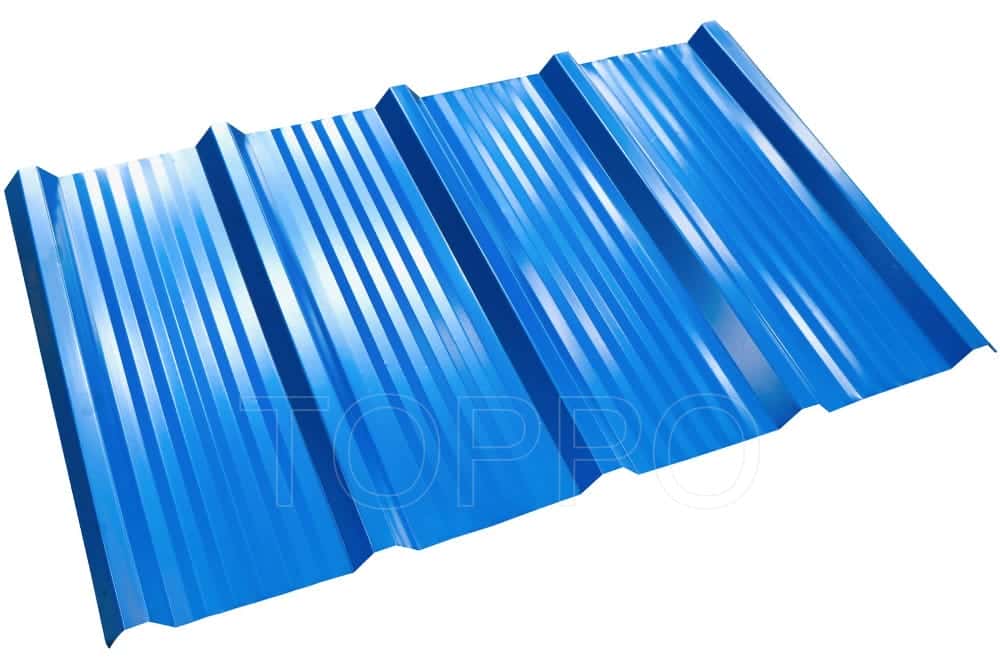

This advanced roll forming machine is specifically designed for producing trapezoidal metal roofing sheets. Engineered with precision and durability, it features full automation for high-speed production with minimal manual operation. The machine structure is robust, utilizing high-grade steel and components for long-lasting performance.
Machine Type: Trapezoidal Roofing Sheet Roll Forming Machine
Production Speed: 10-15m/min
Material Width: 1000mm (customizable)
Effective Width: 828mm (customizable)
Material Thickness: 0.3mm - 0.8mm
Material: Galvanized steel, PPGI, aluminum

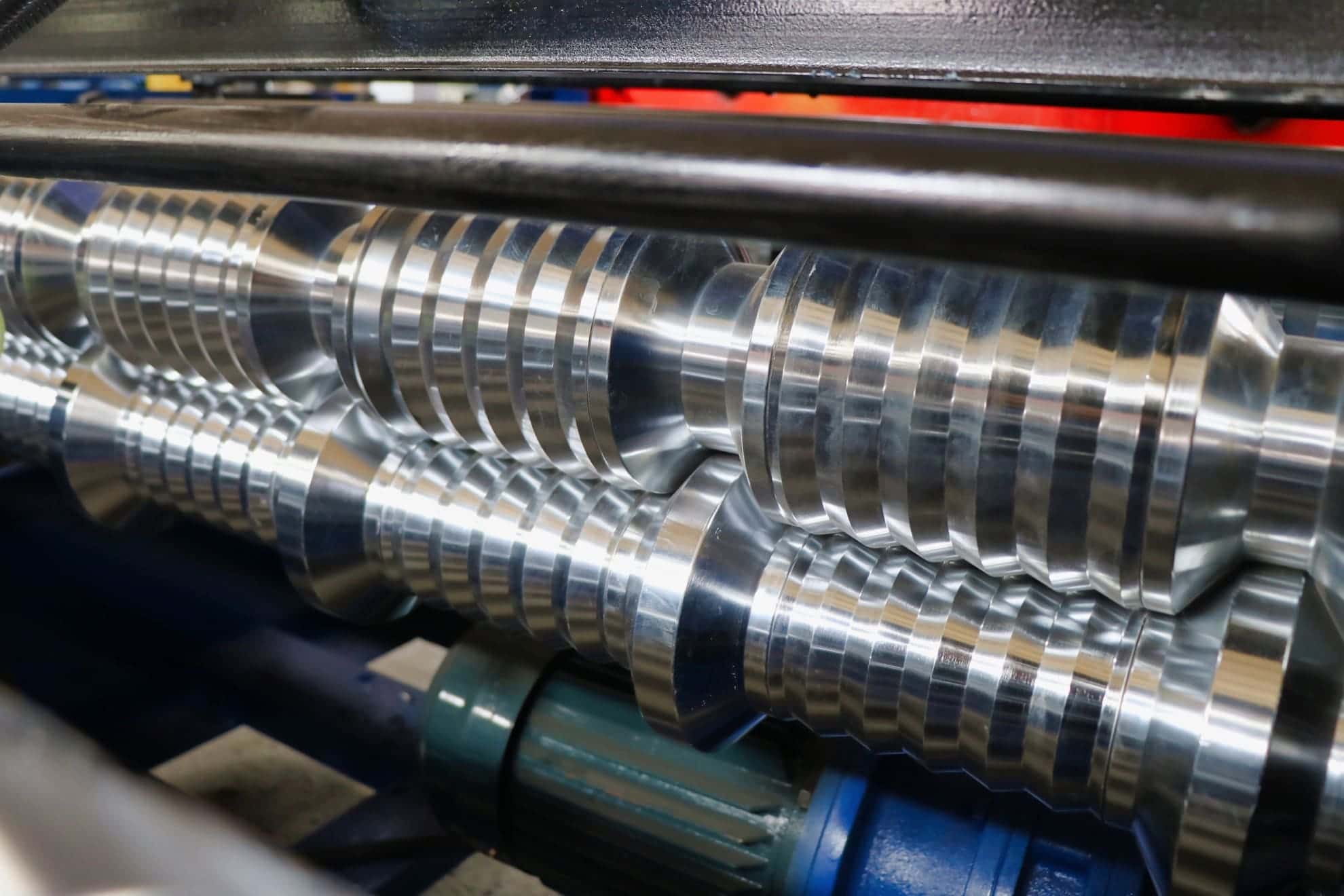

Roller Stations: 18-24 stations depending on profile
Roller Material: 45# steel with hard chrome plating
Shaft Diameter: 70mm
Driving System: Chain drive
Motor Power: 5.5KW main motor

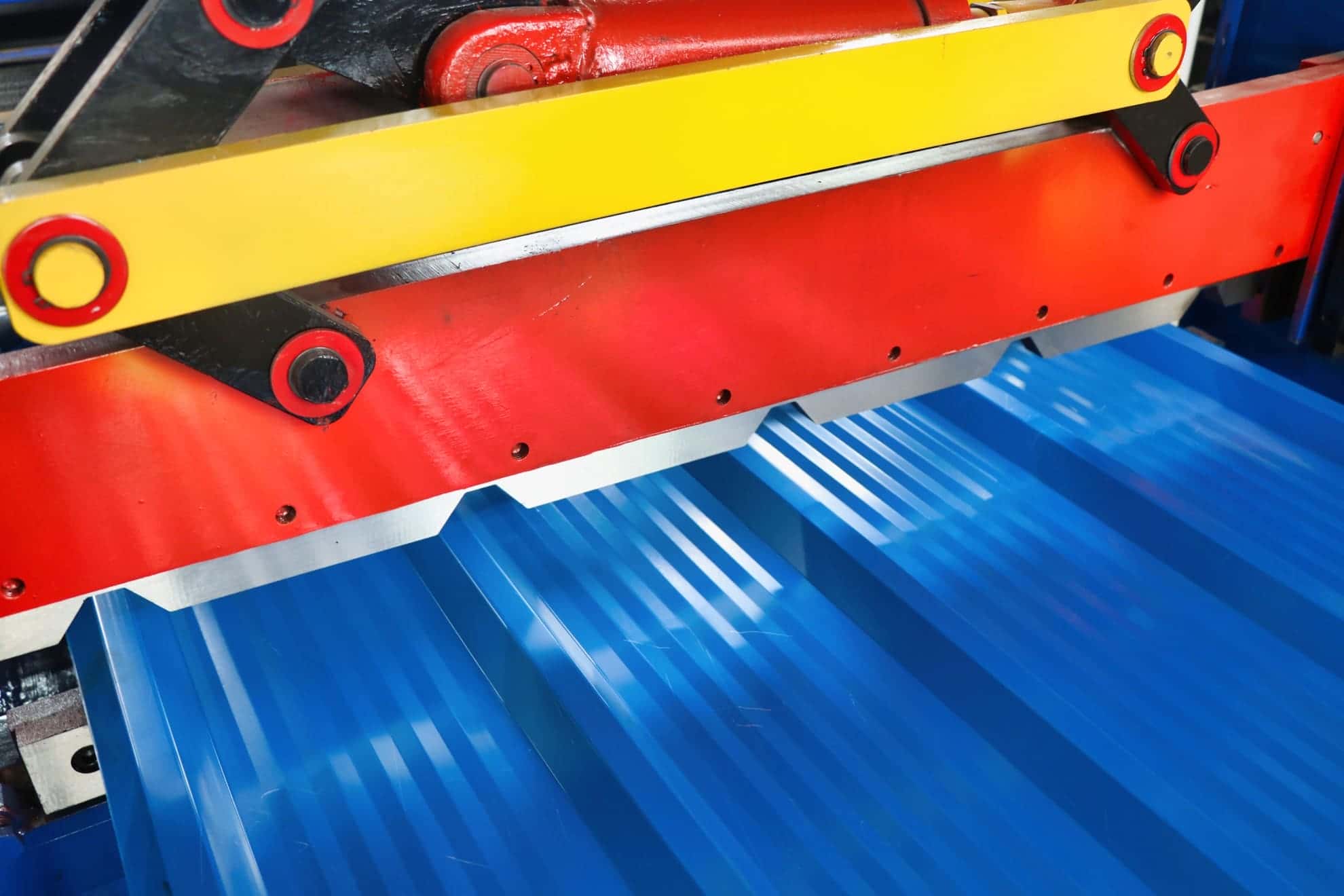

Cutting System: Hydraulic cutting with Cr12 steel blades
Hydraulic Power: 4KW hydraulic station
Control System: PLC control with touch screen (Delta/Siemens)
Operation: Fully automatic with length and quantity setting
Voltage: 380V/50Hz/3Phase (customizable)
Dimension: Approx. 7.5m x 1.2m x 1.5m
Weight: About 4.5T
Color: Customized paint finish
Certification: CE, ISO
Warranty: 2 years for machinery, lifetime technical support
After-Sales Service: Engineers available overseas
Application: Industrial roofing systems, steel building construction
Feeding Guide: Manual adjustable guiding system
Leveling Device: 4-roller leveling for smooth material feeding
Encoder: Omron for accurate length measurement
Control Cabinet: Independent control box with air cooling
Noise Level: ≤75dB during operation
Lubrication System: Manual oiling system
Protective Cover: Optional safety guards available
Delivery Time: 30 days after deposit
Packing: Plastic film and steel wire fixed in container
Shipping: By sea, FOB Tianjin port
MOQ: 1 set
OEM Service: Available
Trademark: TOPPO
Transport Package: Standard export packaging
HS Code: 8455221000
Automation: Full automatic with touch screen interface
Software Compatibility: Compatible with CAD profile input
Whether you're starting a new roofing panel production line or upgrading existing equipment, this machine offers unmatched reliability, speed, and precision for modern manufacturing.
