Machine Type: Roll Forming Machine
Application: Steel roofing sheet forming
Material: Galvanized steel, PPGI, Aluminum
Control System: PLC (Delta/Siemens)
Cutting System: Hydraulic cutting with Cr12Mov blade

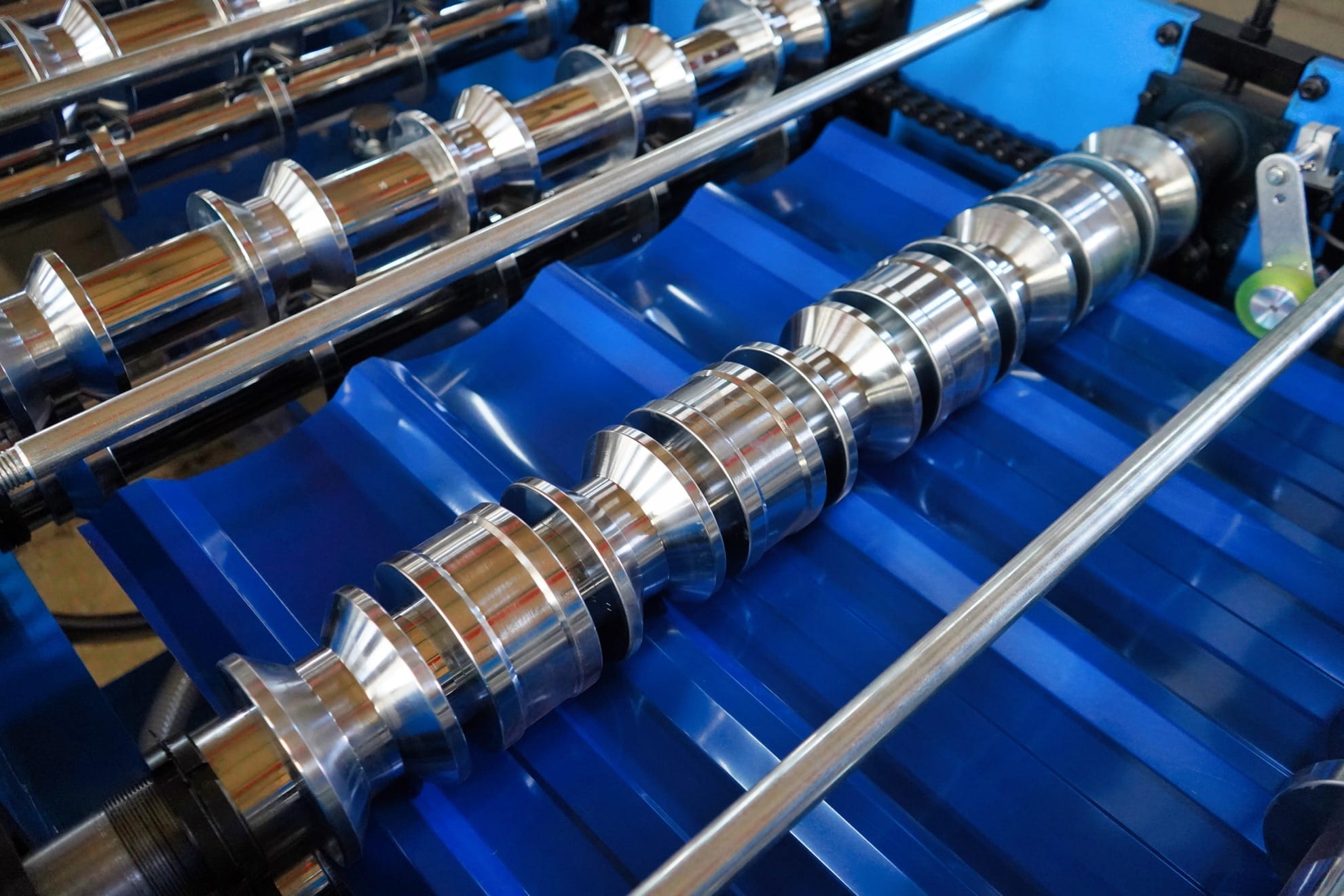

Rollers: 18-24 stations (customizable)
Roller Material: 45# steel, chrome coated
Shaft Diameter: 70mm
Drive System: Chain drive or gear drive
Main Power: 7.5kW
Hydraulic Power: 5.5kW
Forming Speed: 10-15m/min
Cutting Tolerance: ±1mm
Voltage: 380V/50Hz/3Phase (customizable)
Control Panel: Touch screen interface
Weight: 4-6 tons
Dimension: 8.5m × 1.5m × 1.2m
Color: Customizable
Certification: CE & ISO
Operation Mode: Automatic
Lubrication System: Optional
Cooling System: Air cooling
Production Line: Fully automatic with decoiler and stacker (optional)
Maintenance: Easy maintenance design
Warranty: 2 years
Delivery Time: 30-45 days
Packaging: Plastic film & steel wire fixed in container
Installation Service: Overseas installation available
After-sales Service: Online support, video technical support
Noise Level: ≤ 75 dB
Environment: Indoor use only

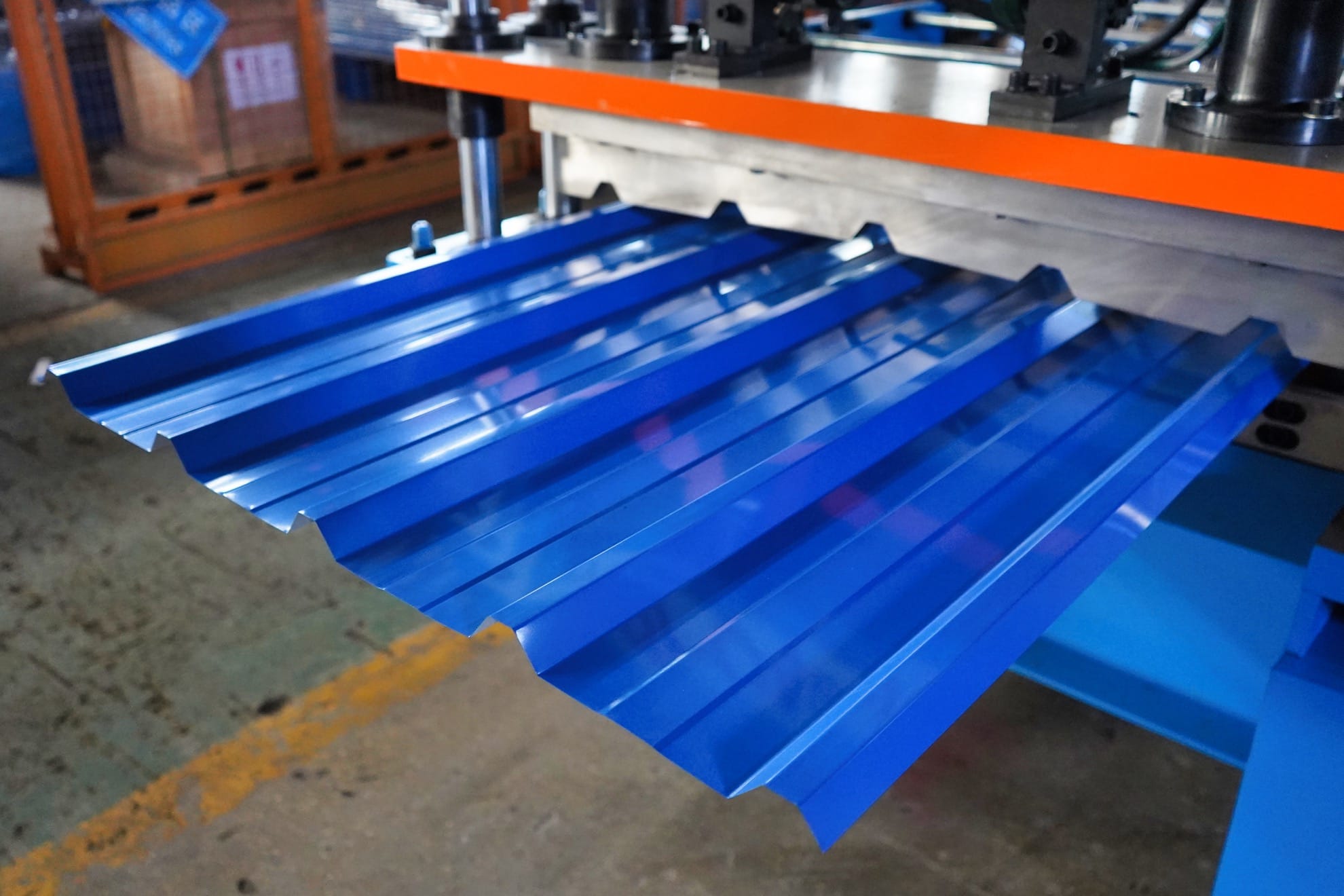

Profile Shape: Trapezoidal / Corrugated / Custom
Sheet Thickness: 0.3–0.8mm
Max Feeding Width: 1250mm
Effective Width: 1000mm
Roll Forming Steps: 16–20
Roller Coating: Hard chrome
Roller Shaft Material: High-grade steel
Machine Frame: Welded steel structure
Power Supply: Standard three-phase
Frequency Converter: Included
Safety Devices: Emergency stop button
Production Capacity: High-output configuration
Material Feed: Manual/automatic feeder
This steel roll forming machine is engineered for precision, durability, and high efficiency in continuous production environments.
